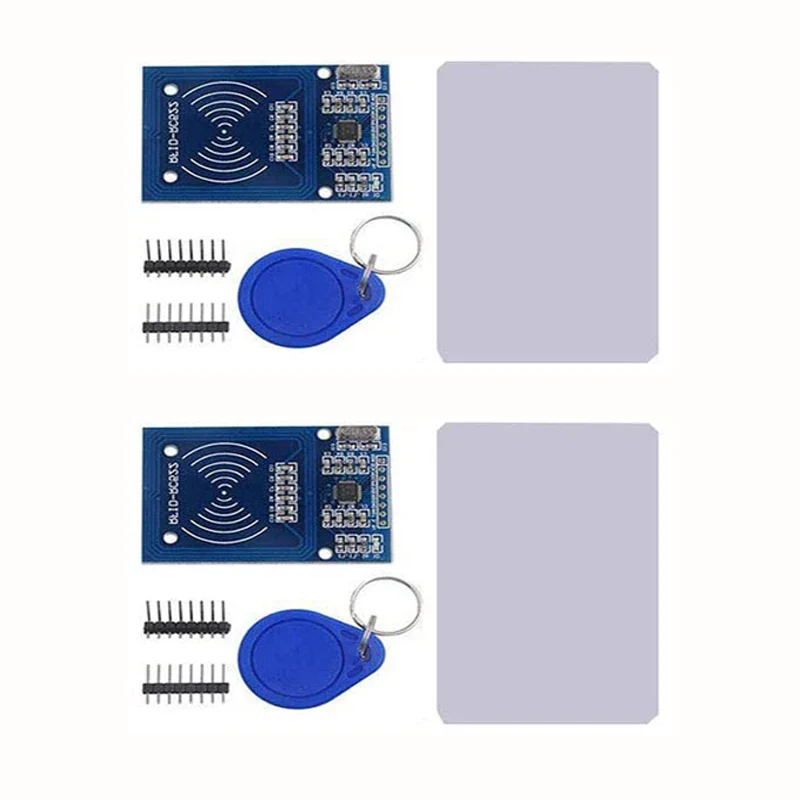

RFID IC Wireless Module MFRC-522 RC-522 RC522 IC KEY SPI Writer Reader IC Card Proximity for Arduino
Working current: 13-26mA/DC 3.3V
Idle current: 10-13mA/DC 3.3V
Sleep current:<80uA
Peak current:<30mA
Sleep current:<80uA
Working frequency: 13.56MHz
Ā

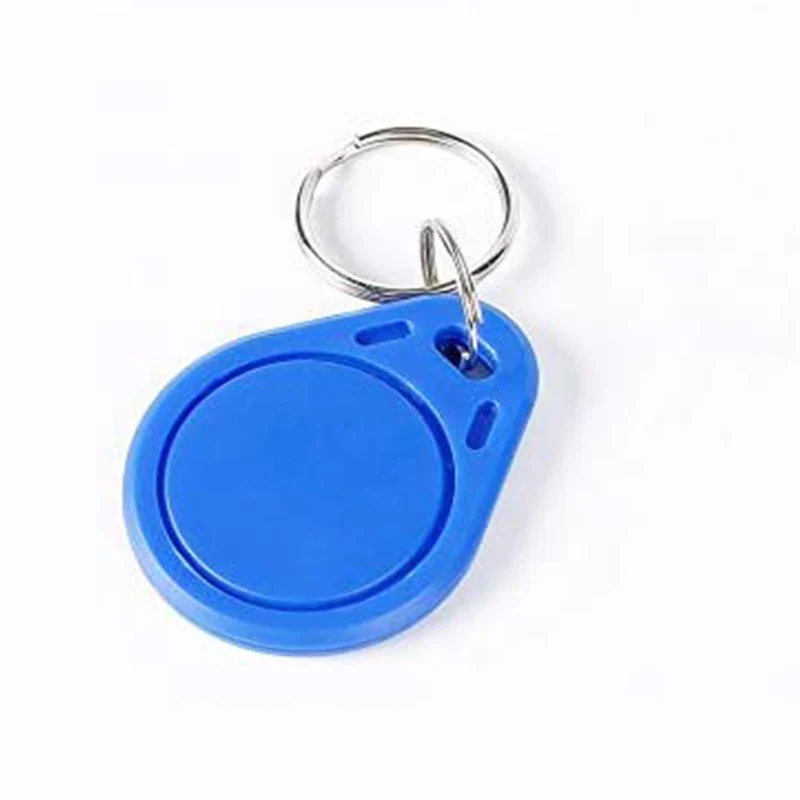

Supported card types: Mifar S 50, mifare1S70, MIFARE Superlight, mifar Pro, mifar Destroy
Product physical characteristics: Size: 40mm X 60mm
Ā
MF RC522 is a high integration read-write card chip used in 13.56MHz non-contact communication. It is a low voltage, low-cost, and comprehensive application
Ā
A small, non-contact read and write card chip is a good choice for the development of intelligent instruments and portable handheld devices. MF RC522 utilizes advanced modulation and
Ā
The demodulation concept fully integrates all types of passive non-contact communication methods and protocols at 13.56MHz. Supports 14443A compatible responder signal
Ā
Number. The digital part handles ISO14443A frames and error detection. In addition, it also supports fast CRYPTO1 encryption algorithm and language verification for MIFARE series products
Ā
Product. MFRC522 supports faster non-contact communication in the MIFARE series, with a bidirectional data transfer rate of up to 424kbit/s. As 1 3.56MHz
Ā
The new member of the high integration read-write card series chip family, MF RC522, has many similarities with MF RC500 and MF RC530, but also has many advantages
Ā
Multiple characteristics and differences. It adopts SPI mode for communication with the host, which is conducive to reducing wiring, reducing PCB board volume, and reducing costs.
Ā
[Introduction to RFID Module]

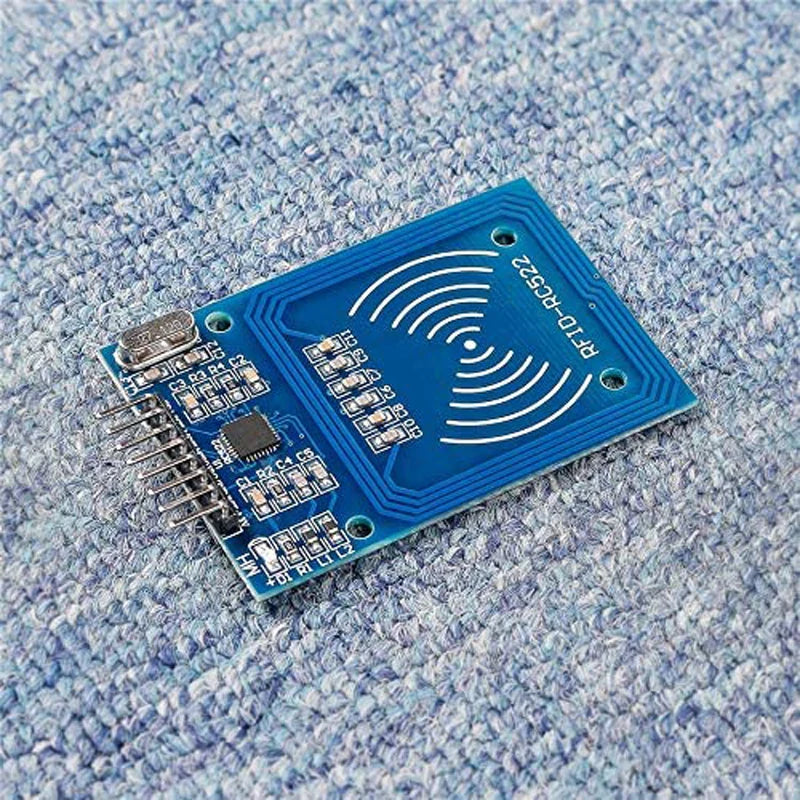

The MF522-AN module adopts Philips MFRC522 original chip design for card reading circuit, which is convenient to use, low in cost, and suitable for equipment development and reading
Ā
Users of card development and other applications, as well as those who need to design/produce RF card terminals. This module can be directly loaded into various card reader molds. Module adopts
Ā

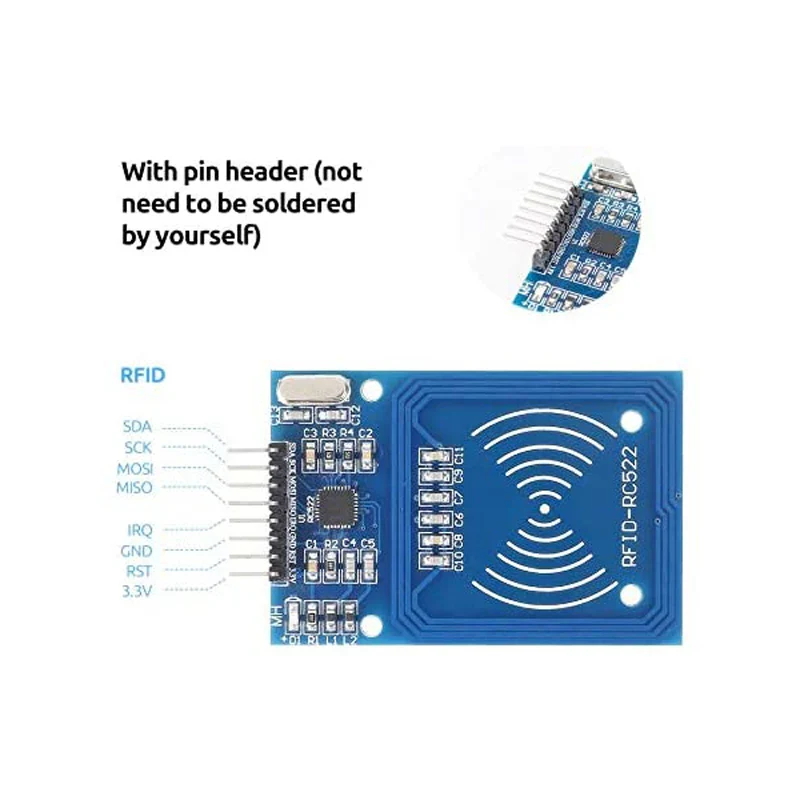

The voltage is 3.3V and can be directly connected to any CPU motherboard of the user through SPI interface with a few simple lines, ensuring stable and reliable operation of the module
The distance between writing and reading cards is far
Ā
