M5Stack CoreS3 SE IoT Controller ESP32 Series S3 Development Kit WiFi 2.0 Inch Screen To DIY Project Development Smart Home
Ā
M5Stack M5CORES3 SE IoTĀ Development Board
Ā
Ā Product DescriptionĀ
Ā

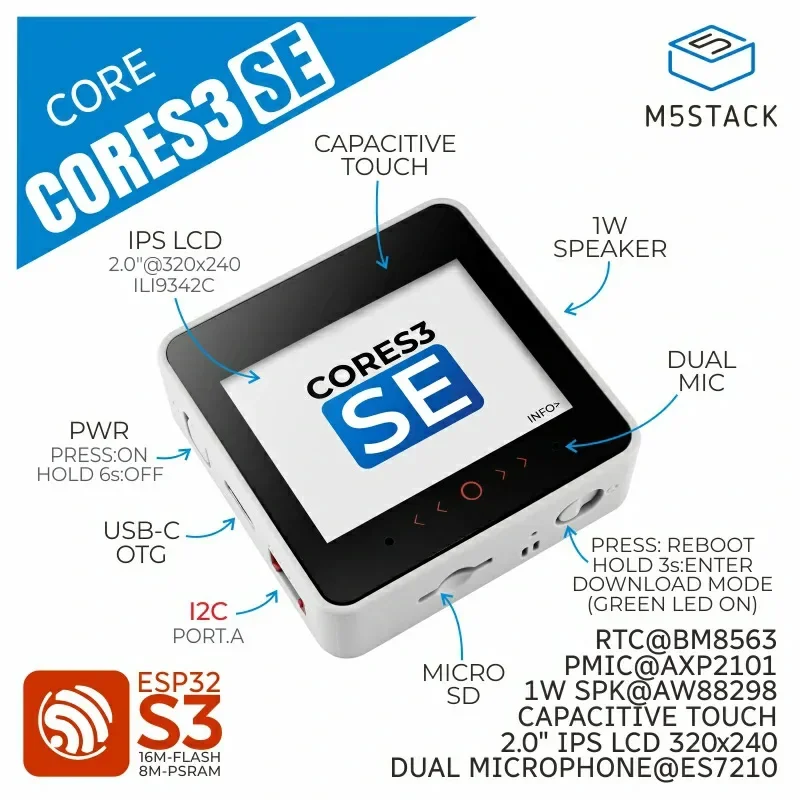

The M5CoreS3 SE is a lightweight version of the third-generation CoreS3 main unit in the M5Stack development kit series. It is powered by the ESP32-S3 solution, featuring a dual-core Xtensa LX7 processor with a main frequency of 240MHz, and comes with built-in (2.4G)WiFi functionality. It has onboard 16MB FLASH and 8MB PSRAM; programs can be downloaded via the TYPE-C interface, which supports OTG and CDC functions, making it convenient to connect USB devices and burn firmware. The front is equipped with a 2.0-inch capacitive touch IPS screen, with a high-strength glass panel. The power supply part uses the AXP2101 power management chip and 4-way power flow control circuit, designed for low power consumption overall. It has an onboard MicroSD card slot and a BM8563 RTC chip that provides precise timing and sleep-timer wake-up functions. For sound output, it uses a high-fidelity 16-bit I2S amplifier chip AW88298 and has a built-in 1W speaker. For sound input, it uses an ES7210 audio decoding chip with dual microphone input. The device body has an independent power button and reset (RST) button on the side, with a built-in delay circuit. Long pressing the reset button enters program download mode. This product is suitable for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.
Ā Product FeaturesĀ
-
Developed based on ESP32-S3, support WiFi @16MB Flash, 8MB PSRAM
-
Speakers, Dual microphones
-
Capacitive touch screen
-
MicroSD card slot
-
High-strength glass
-
Support OTG and CDC functions
-
AXP2101 power management, low power design
-
Supported programming platforms: Arduino, UIFlow
Ā
Applications
-
IoT development
-
Various DIY project development
-
Smart home control system
-
Industrial automation control system

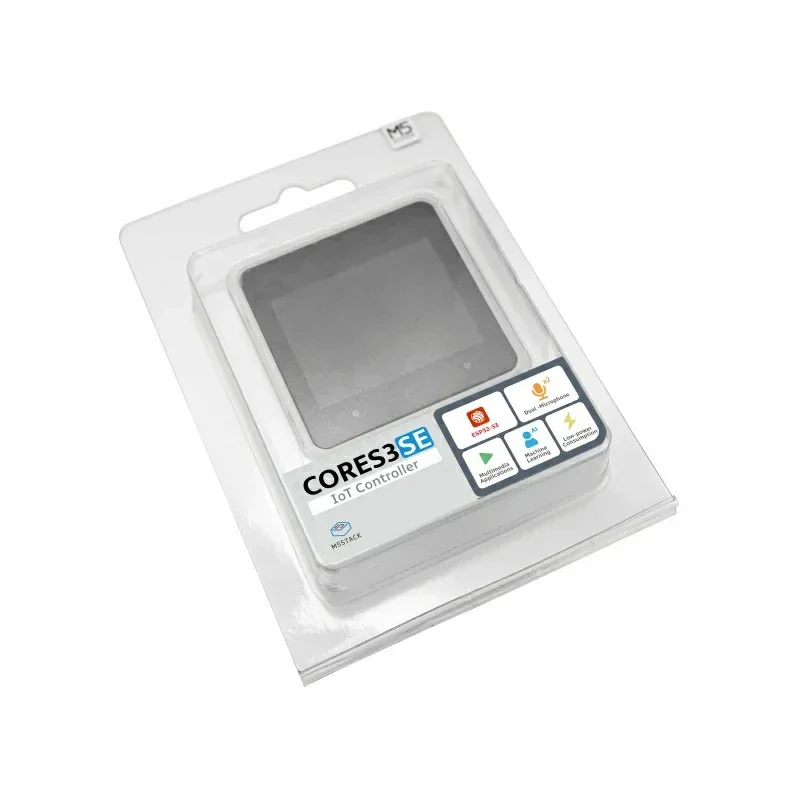

Ā PackageĀ IncludesĀ
1 Ć M5CoreS3 SE

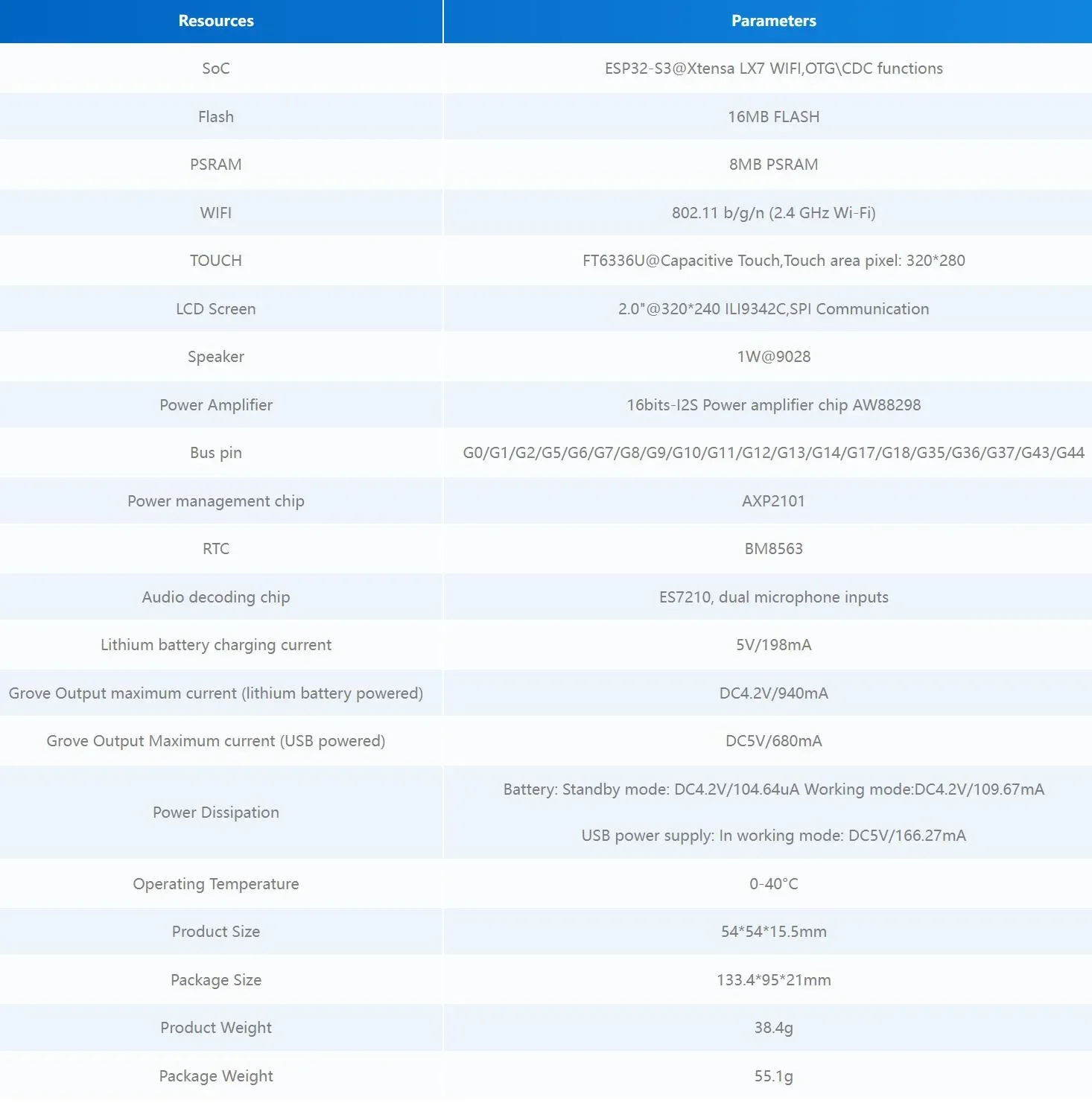

Ā SpecificationĀ
Ā
Ā Product detailsĀ
Ā
M5CoreS3 M-BUS Schematic diagram

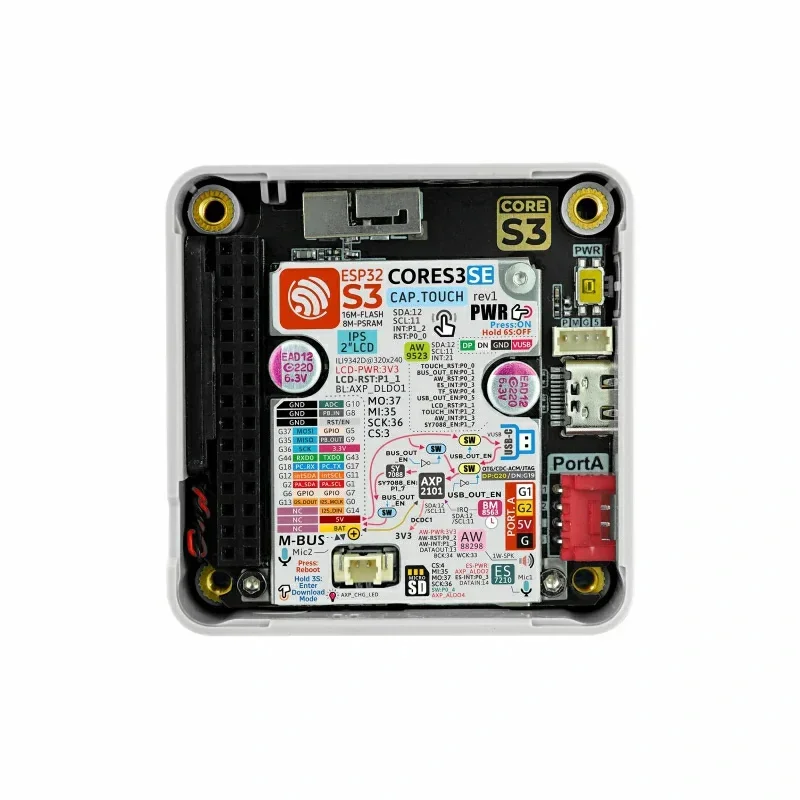

Core series host pin mapping comparison

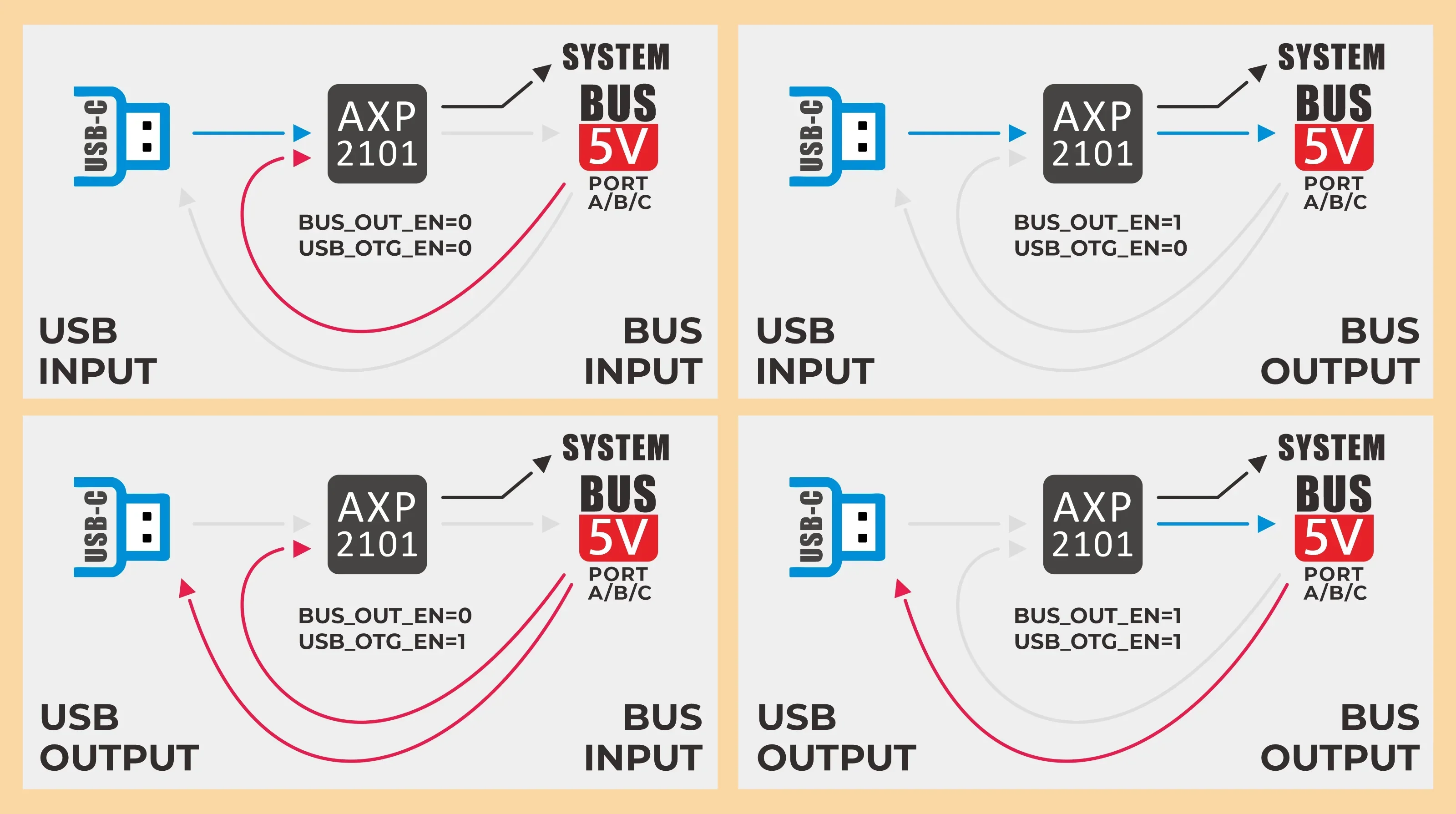

Power Management

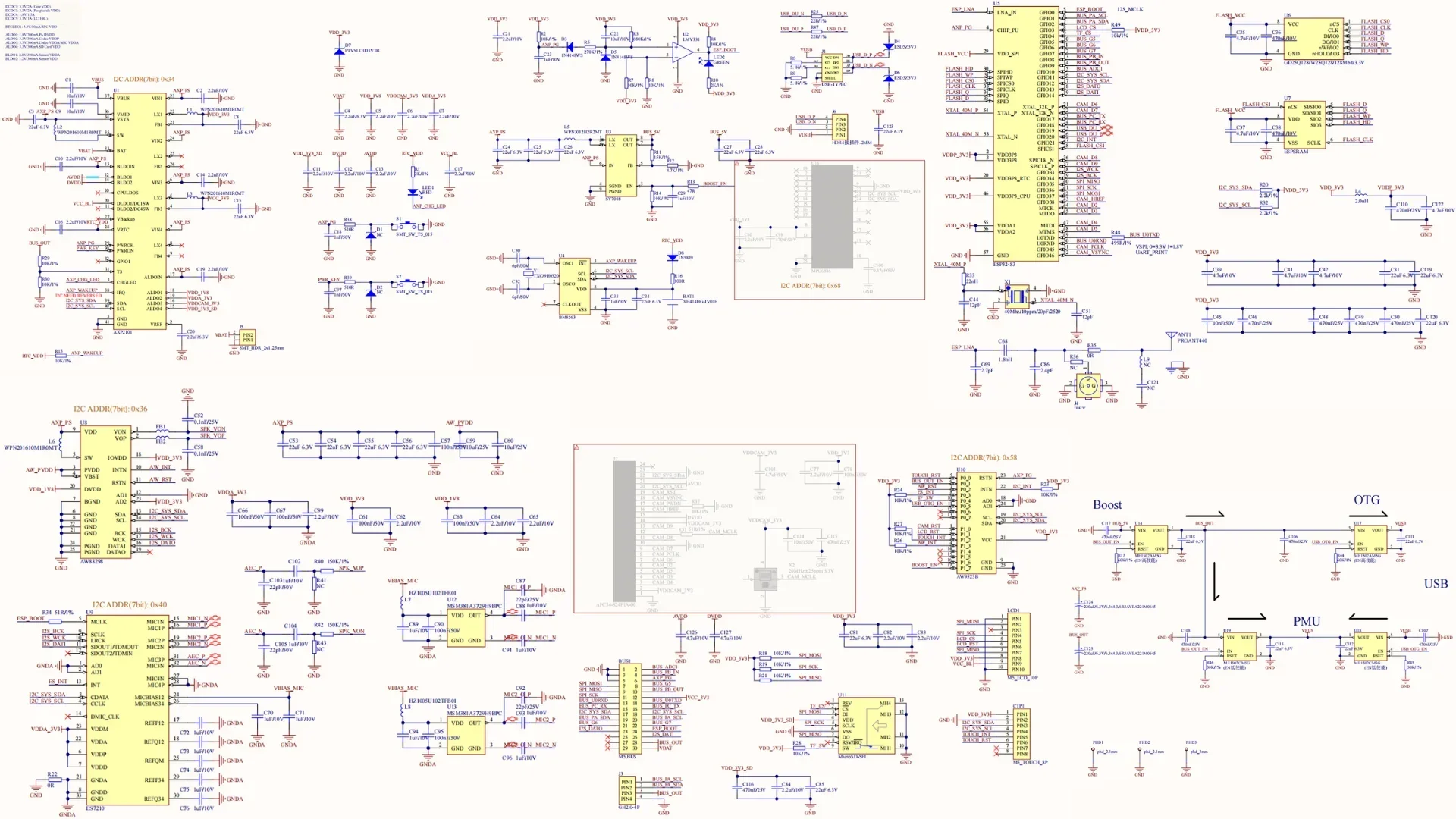

Schematic

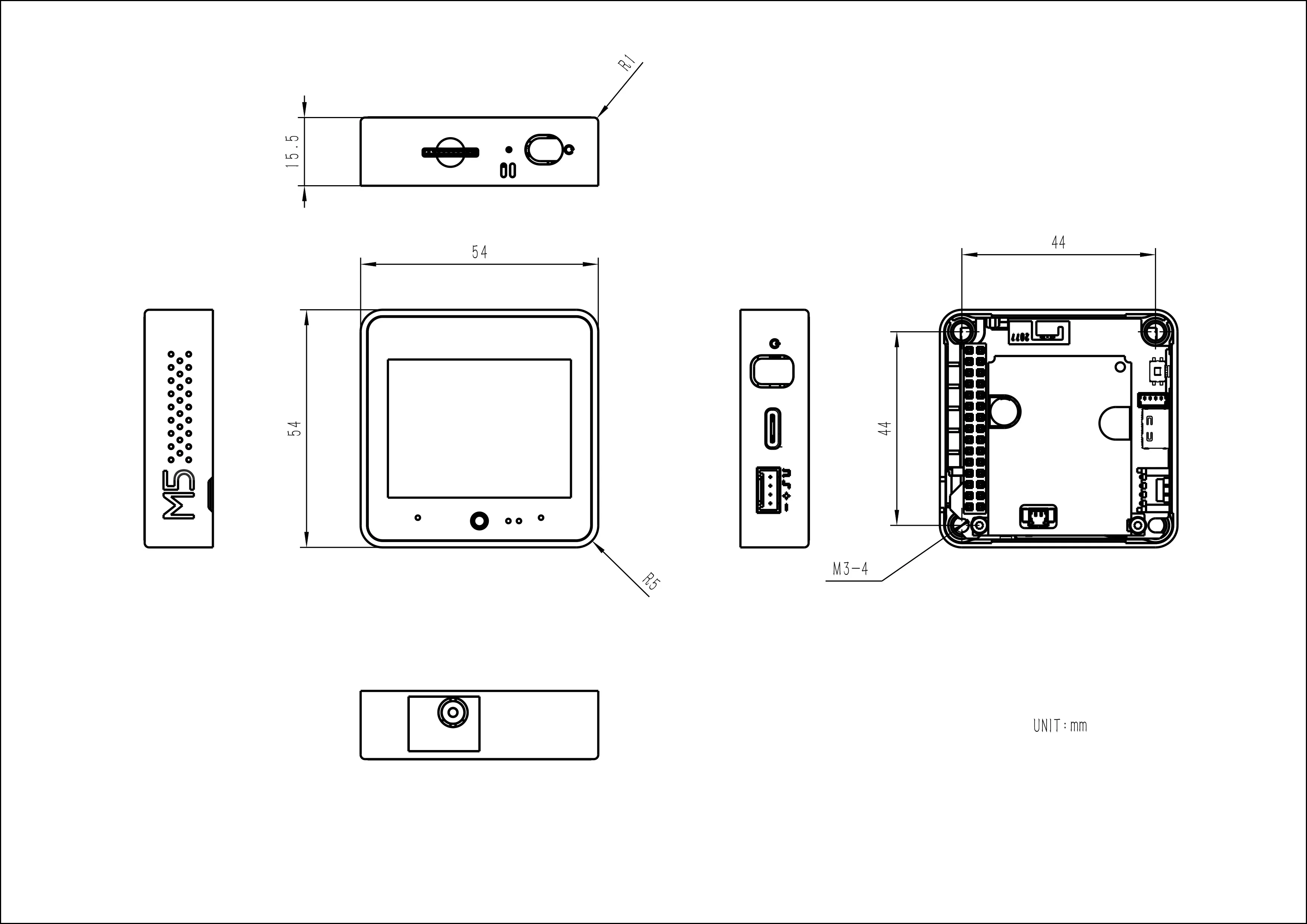

Module Size
Ā
Ā Kindly Remind
Download Mode
Before downloading the program, please be sure to press and hold the reset button 3S (green light) to enter the download mode, otherwise the download will fail!

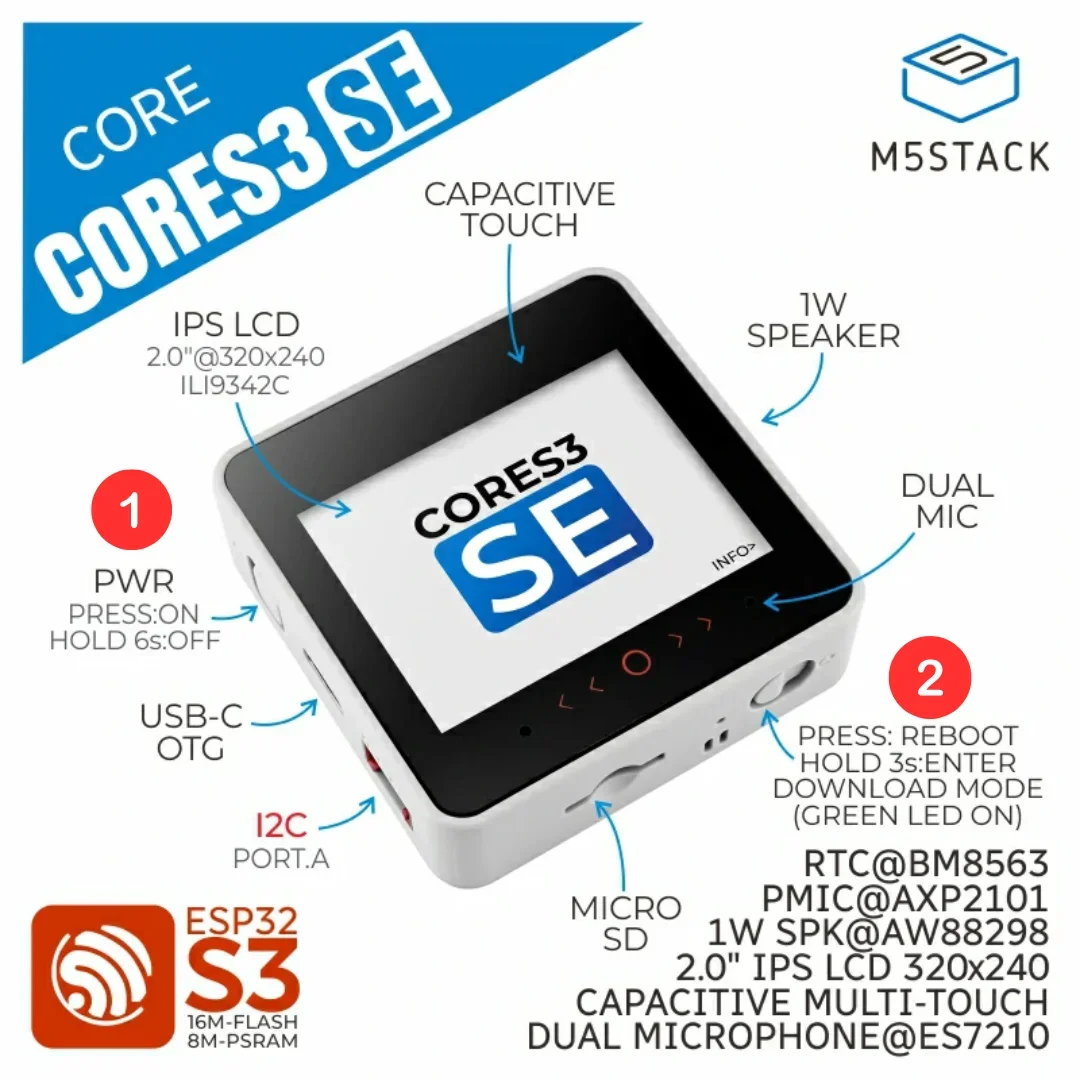

On-off Operation
Power on and off operation:
Power on: Click the left power buttonā
shut down: Long press the left power buttonā for 6 seconds
reset: Click the bottom RST buttonā”
Download mode: Long press reset buttonā” 3S (green light)
For Arduino NOTE
There are hardware differences between M5CoreS3 SE and M5CoreS3. The codes in the library file involving camera, proximity sensor, IMU, and magnetic sensor are not applicable to M5CoreS3 SE.
Ā
