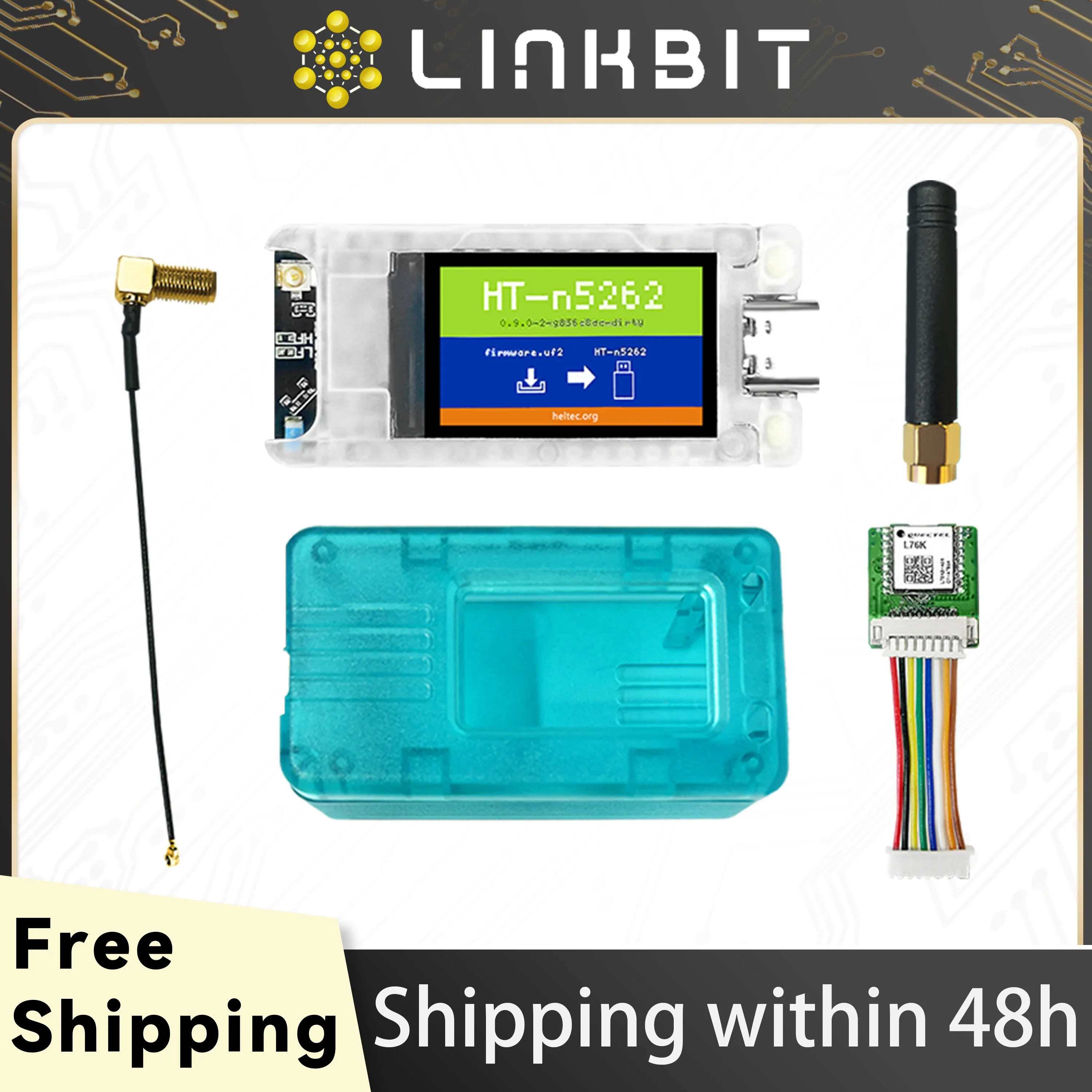

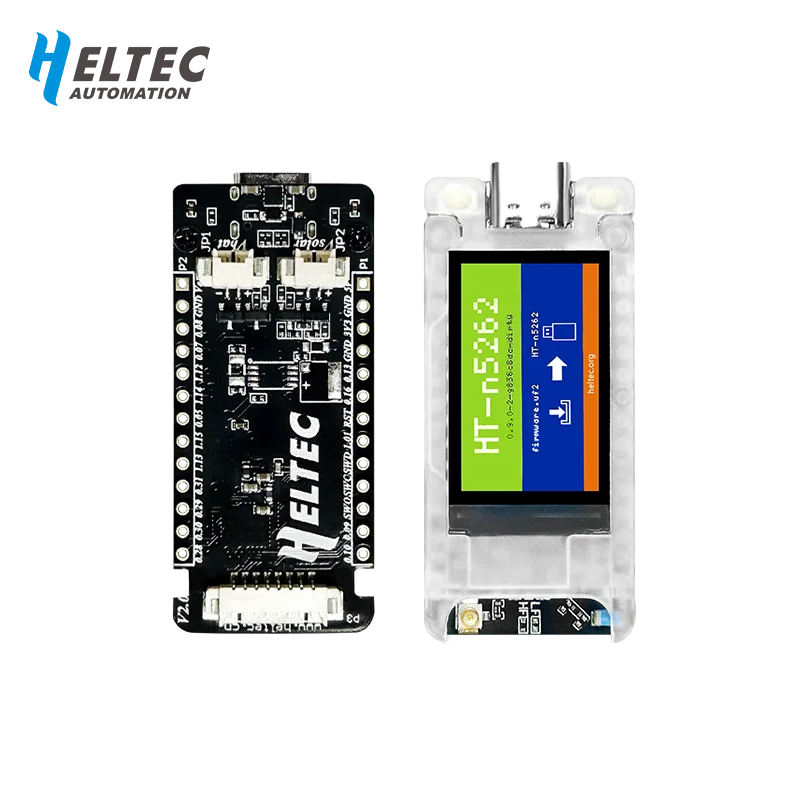

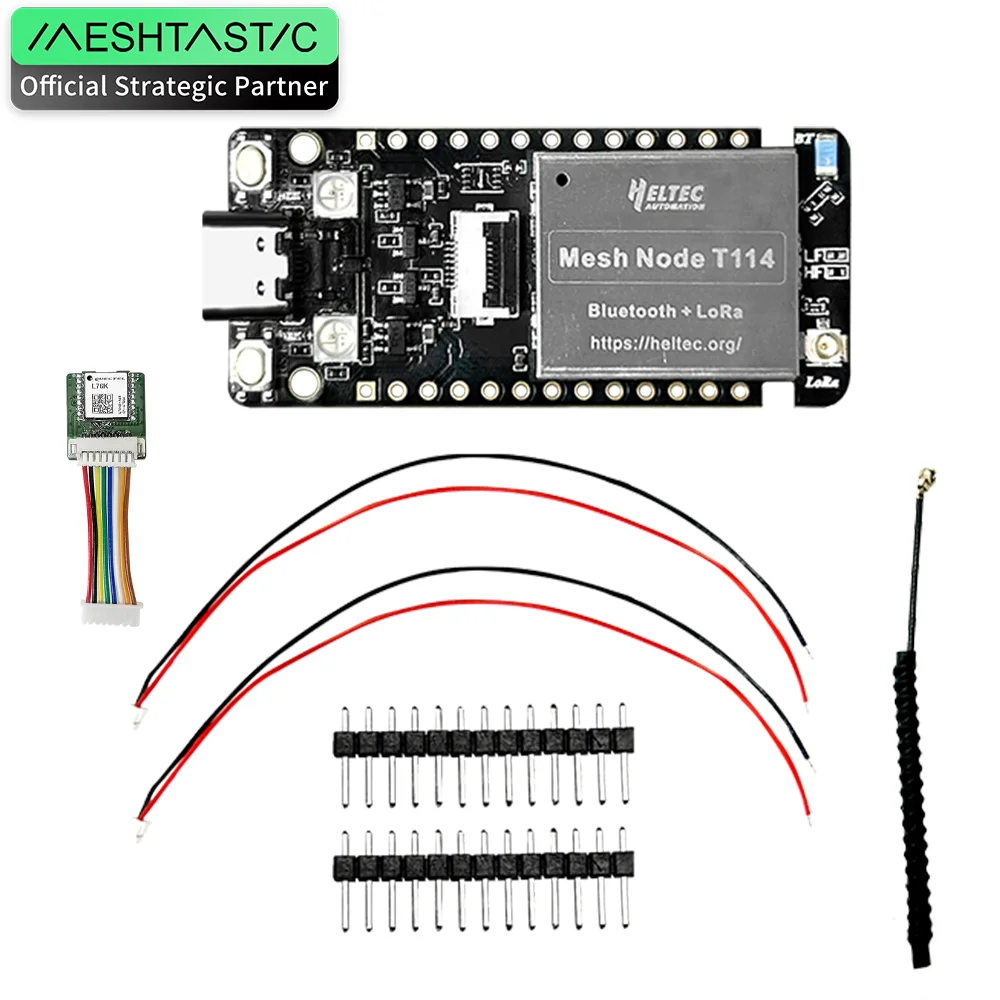

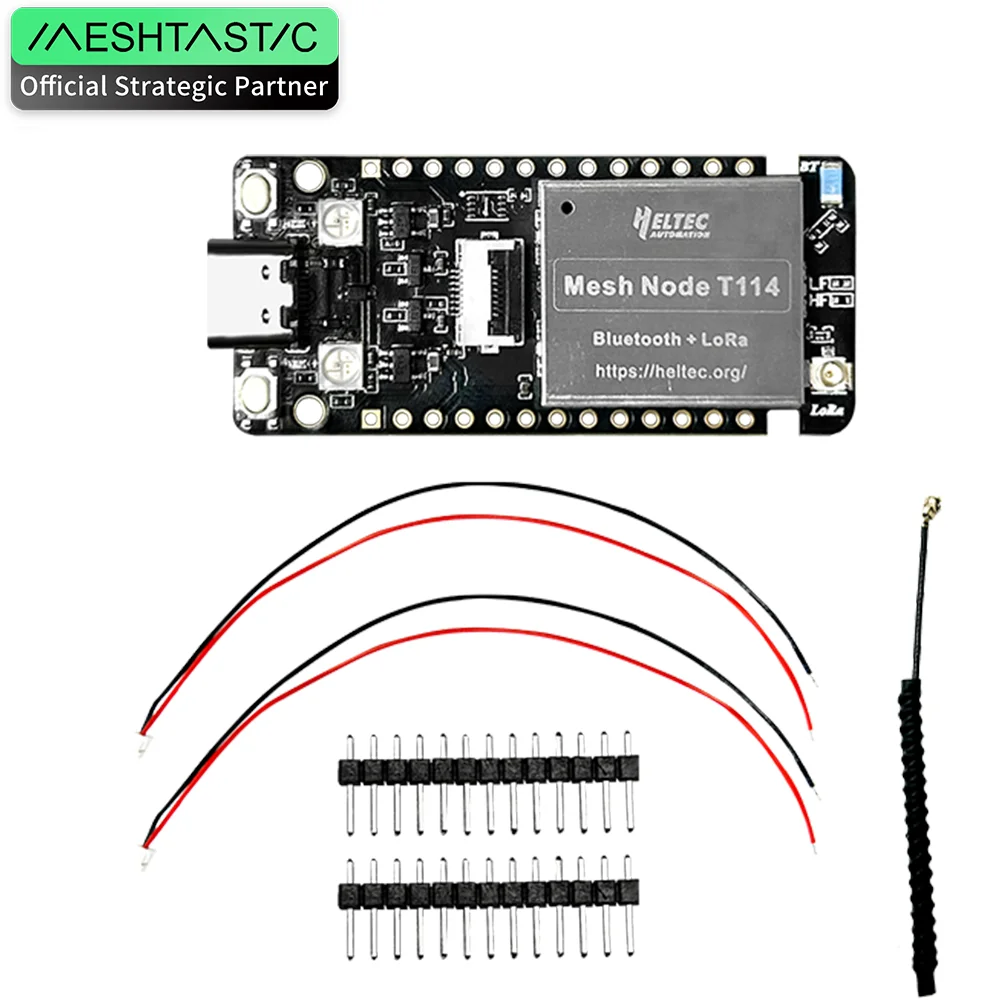

Heltec Meshtastic T114 V2 Tracker Nordic nRF52840 SX1262 LoRaWAN LoRa Arduino 1.14 Inch Display Devboard Low Power TFTBLE

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13

Heltec Meshtastic T114 V2 Tracker Nordic nRF52840 SX1262 LoRaWAN LoRa Arduino 1.14 Inch Display Devboard Low Power TFTBLE

Heltec Meshtastic T114 V2 Tracker Nordic nRF52840 SX1262 LoRaWAN LoRa Arduino 1.14 Inch Display Devboard Low Power TFTBLE



Docs & Resource






Introduction and Operation Video of Mesh Node T114 Development Board





Why do we need Maker series products?



Low Power Chracteristics



Summary

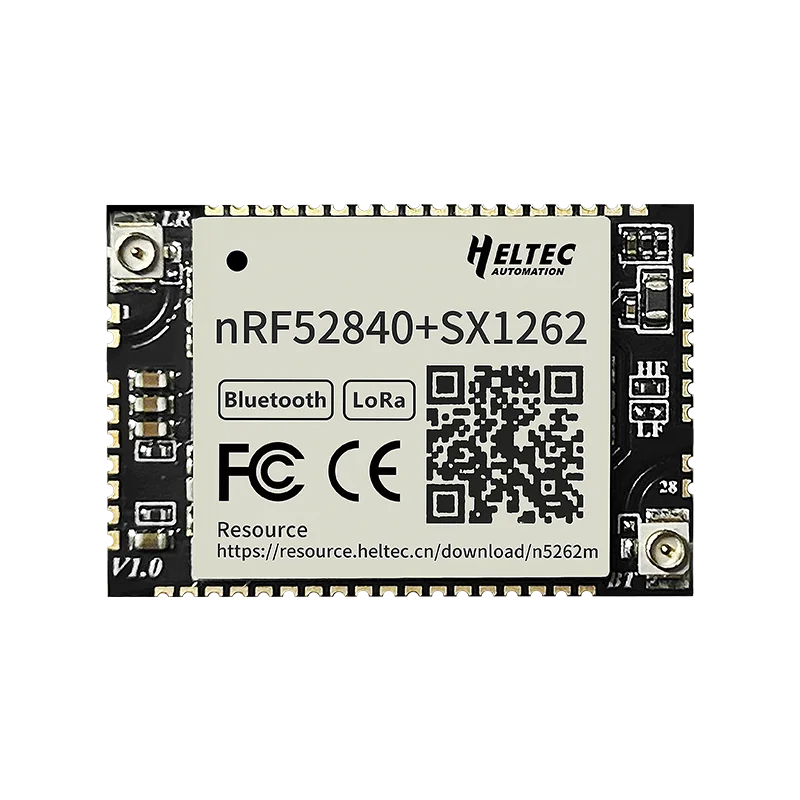

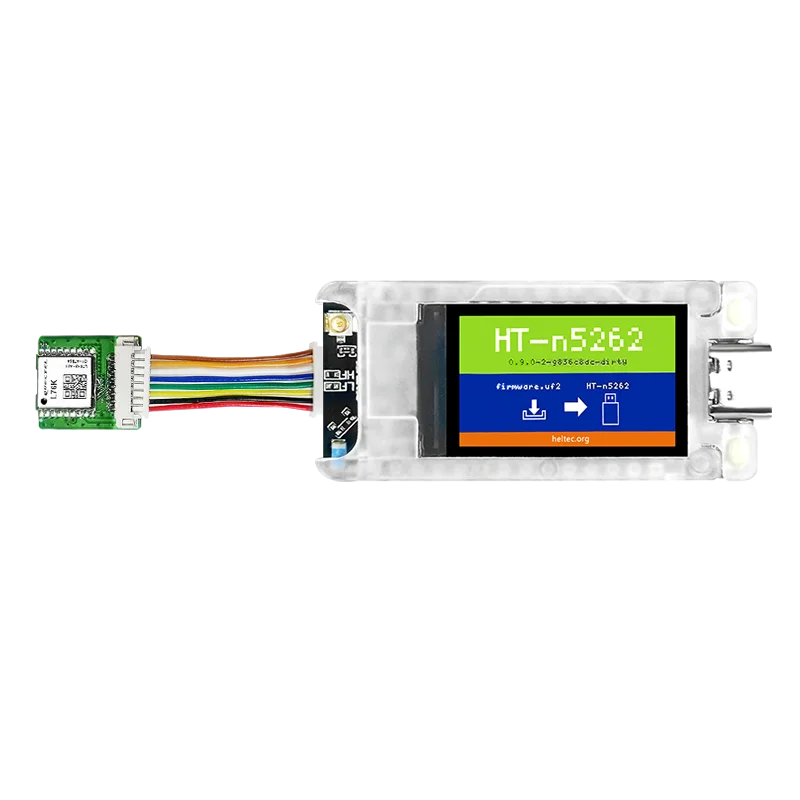

The Mesh Node T114 features a dual-chip combination of nRF52840 and SX1262, simultaneously



supporting both LoRa and Bluetooth communication, with optional GPS and display modules; it achieves



flexible power management via USB, lithium battery, and solar panel interfaces, and exhibits superior



low-power characteristics compared to the Heltec V3; its six-layer PCB architecture and optimized RF



circuit design make it especially suitable and durable for LoRa/LoRaWAN applications such as device



tracking and remote monitoring systems; and finally, the T114 enables development through environment



like Arduino and PlatformIO, offering full compatibility with well-known open-source projects like



Meshtastic and MeshCore











Main Features

  • MCU nRF52840 (Bluetooth), LoRa chipset SX1262.

  • Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors.

  • Low power consumption, 11 uA in deep sleep.

  • Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display up to 262k colors.

  • Operation condition: -20 ~ 70℃, 90%RH(No condensing).

  • Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

  • Compatible with Arduino, we provide development frameworks and libraries.

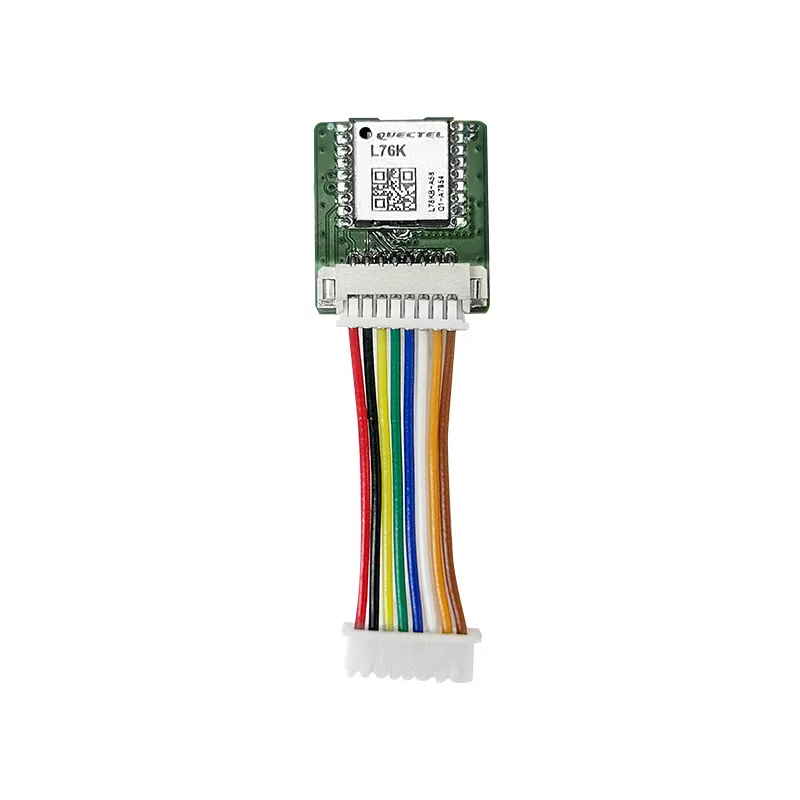

  • Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board.

Docs & Resource



·[Resource] —https://github.com/HelTecAutomation/Heltec_nRF52



·[Attachment] —https://platform.snapemu.com/user/login



·[Attachment] — https://resource.heltec.cn/download/Mesh_Node_T114/MeshNode-



                                     T114_V2.0_SCH(2).pdf



·[Attachment] — https://resource.heltec.cn/download/Mesh_Node_T114/Datasheet.pdf



·[Attachment] — https://resource.heltec.cn/download/Mesh_Node_T114/1.14inch%20LH114T-

                                      IF03%20VER%20C.pdf



·[Resource] — https://resource.heltec.cn/download/Mesh_Node_T114



Pin Map






Dimension



Specifications





Parameters

Description

MCU

nRF52840

LoRa Node Chip

SX1262

Frequency

470~510MHz,;
863~870MHz;
902~928MHZ.

Max. TX Power

21±1dBm

Max. Receiving sensitivity

-135dBm@SF12 BW=125KHz

Bluetooth

Bluetooth LE: Bluetooth 5, Bluetooth mesh

Hardware Resource

USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.

Memory

1M ROM
256KB SRAM

Interface

Type-C USB
2*1.25 lithium battery connector
2*1.25 solar panel connector
LoRa ANT (IPEX1.0)
8*1.25 GPS module connector
2*13*2.54 Header Pin

Battery

3~4.2V battery power supply and charge.

Operating Temperature

-20 ~ 70 ℃

Dimensions

50.80*22.86mm

Low Power Consumption in Deep Sleep

11uA

Display

onboard 1.14 inch TFT-LCD display

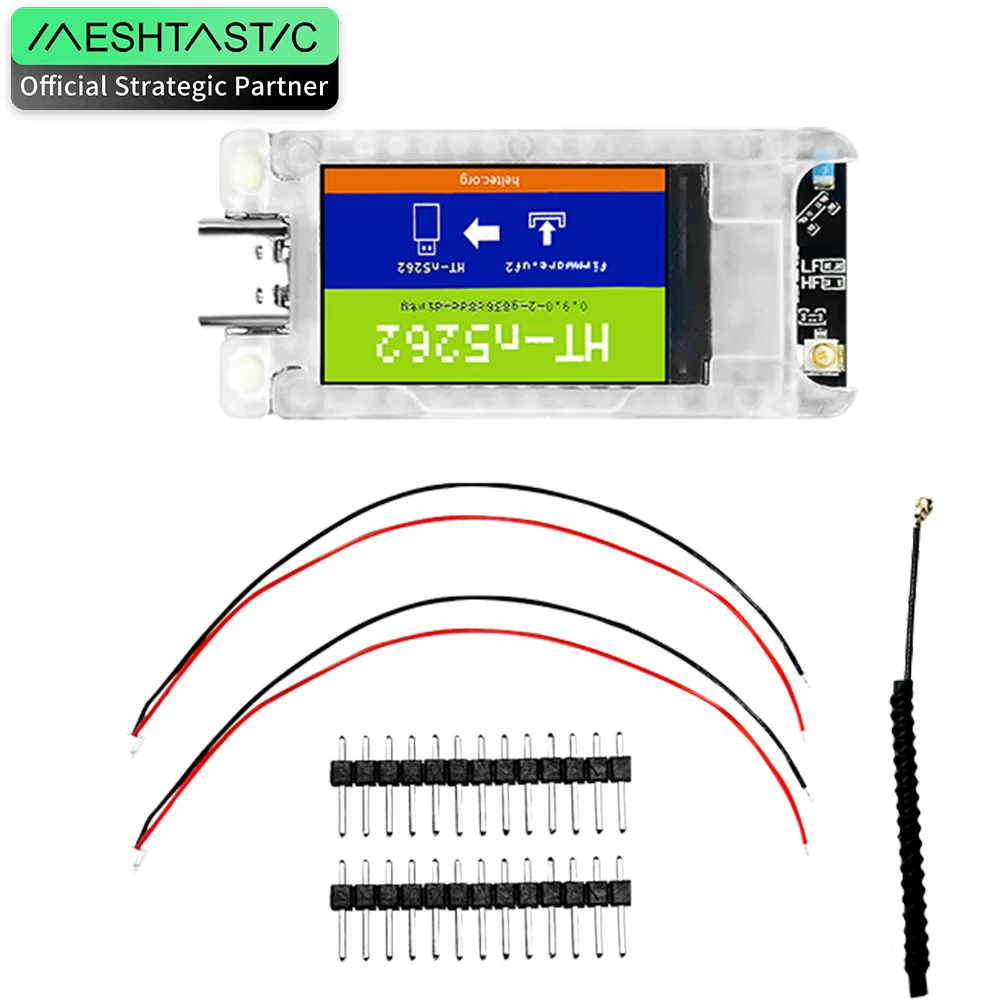

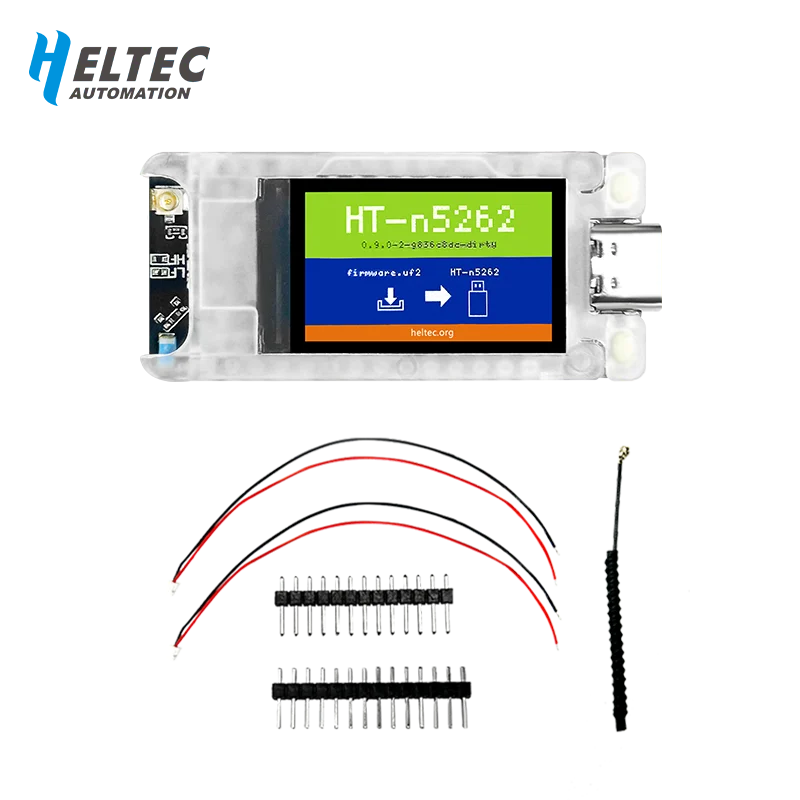

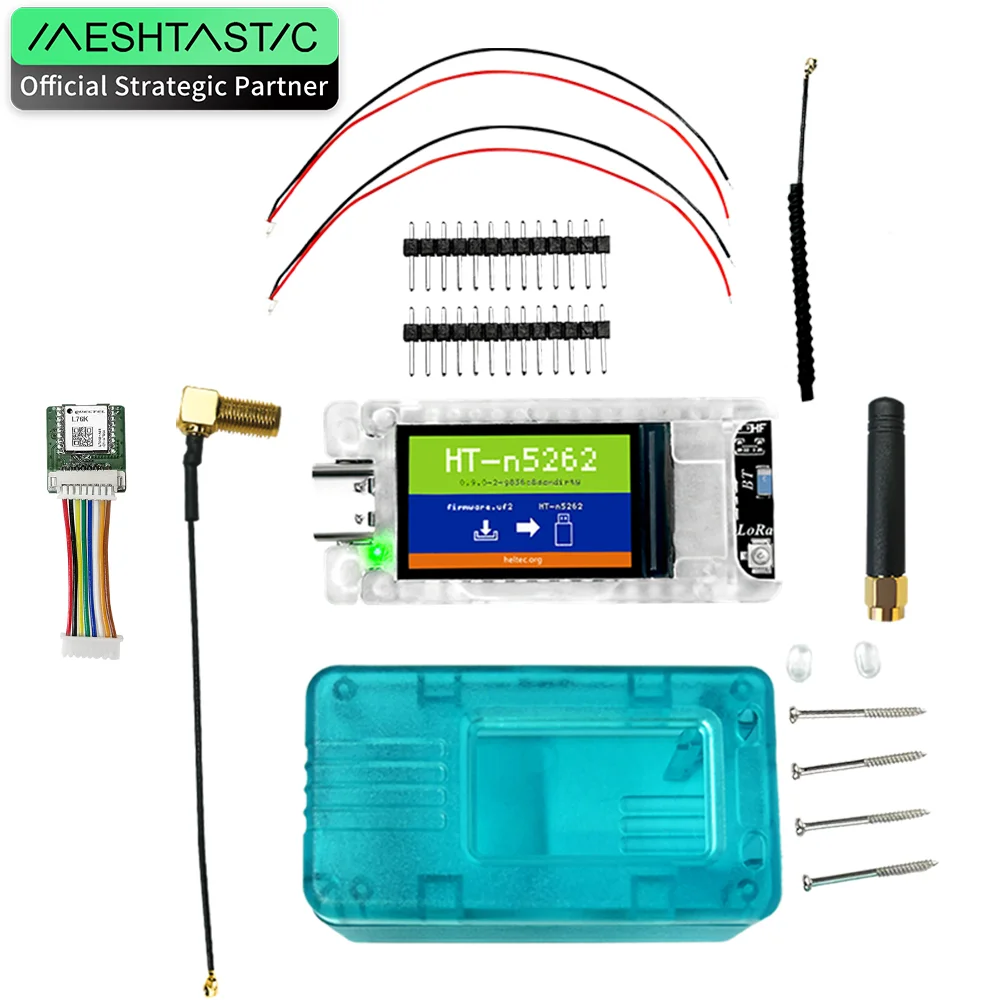

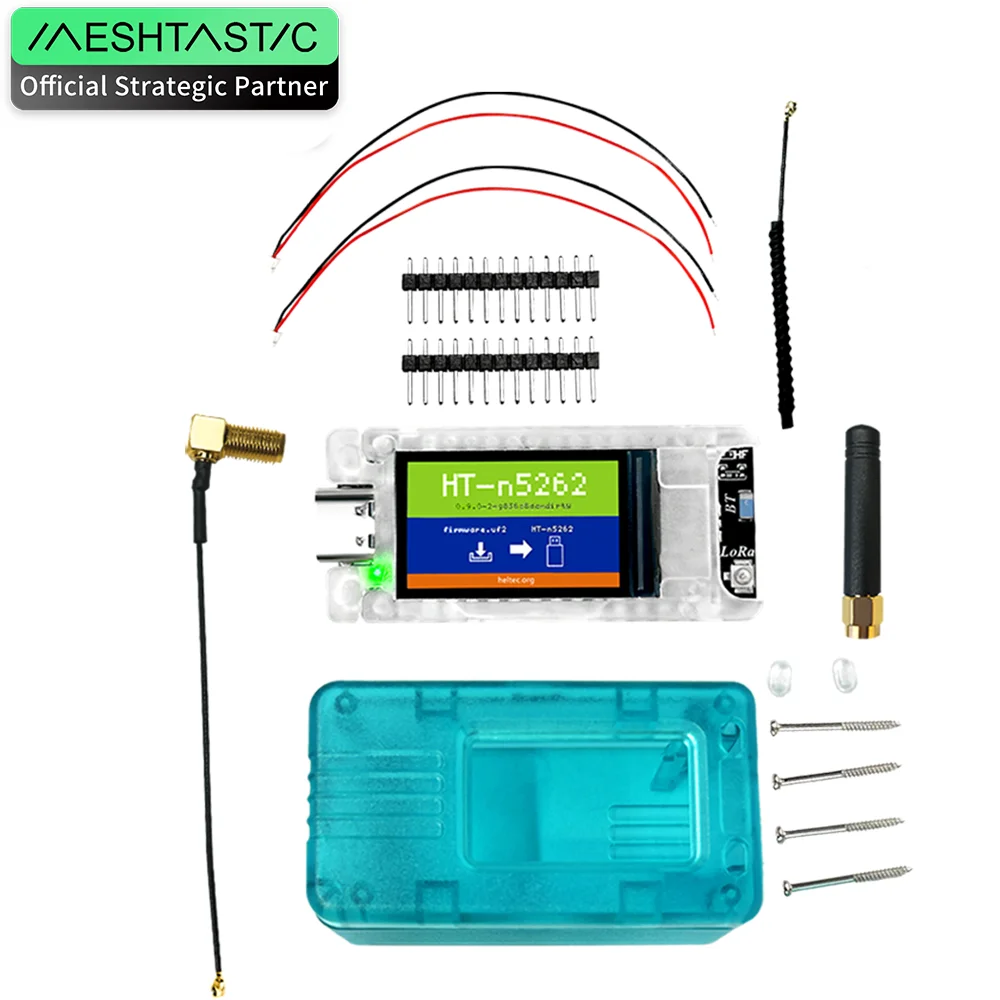

Parking List
