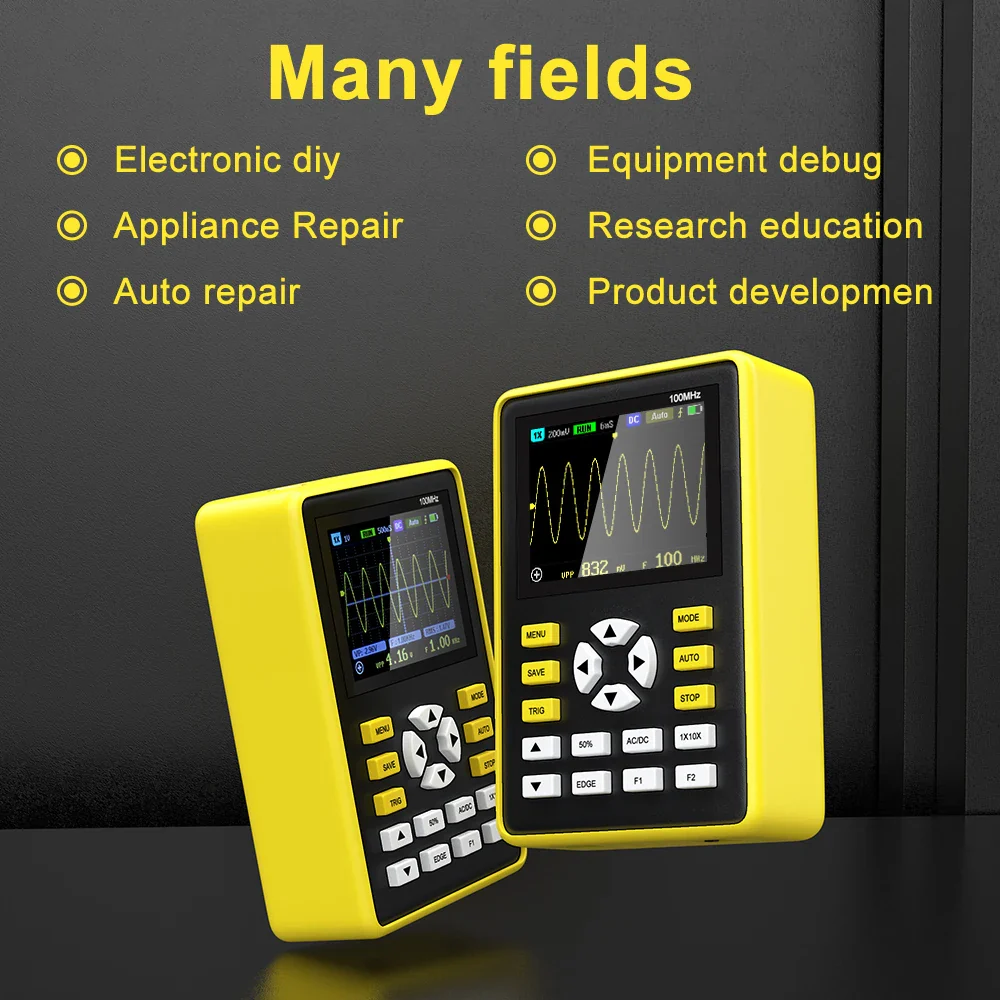

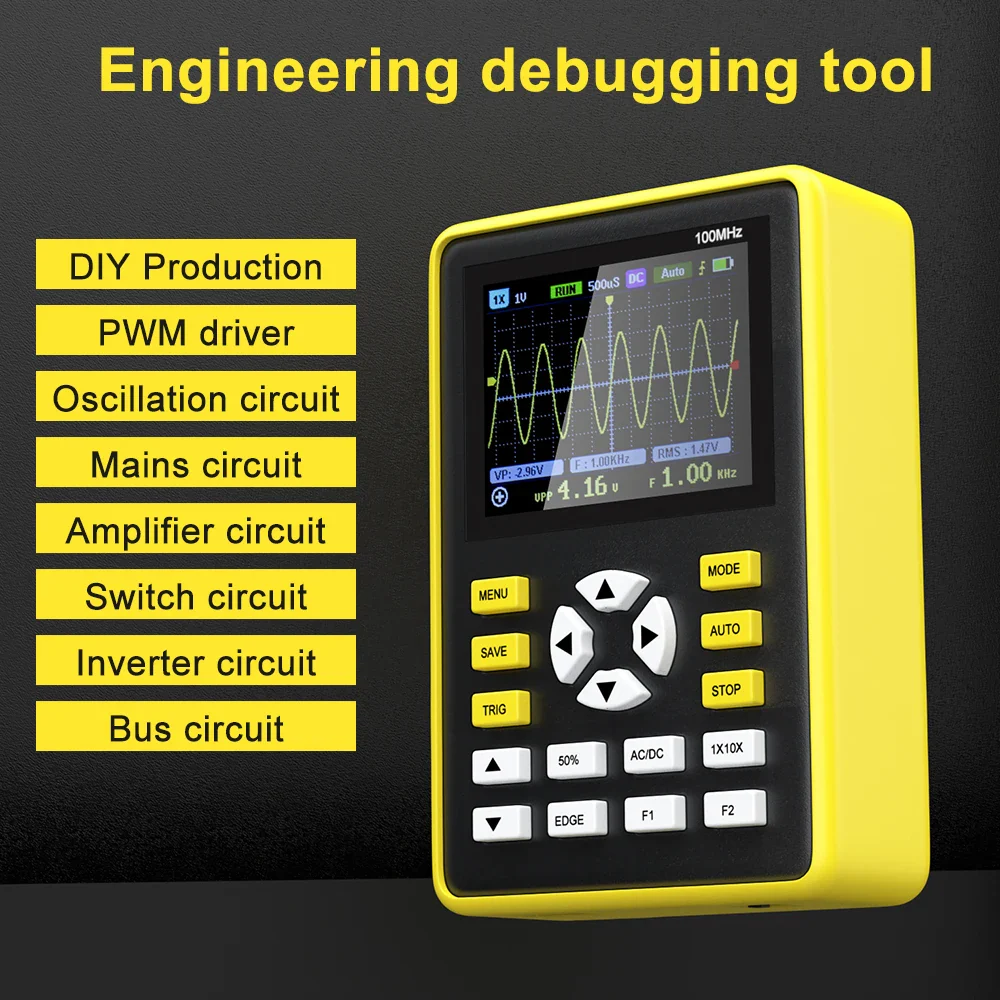

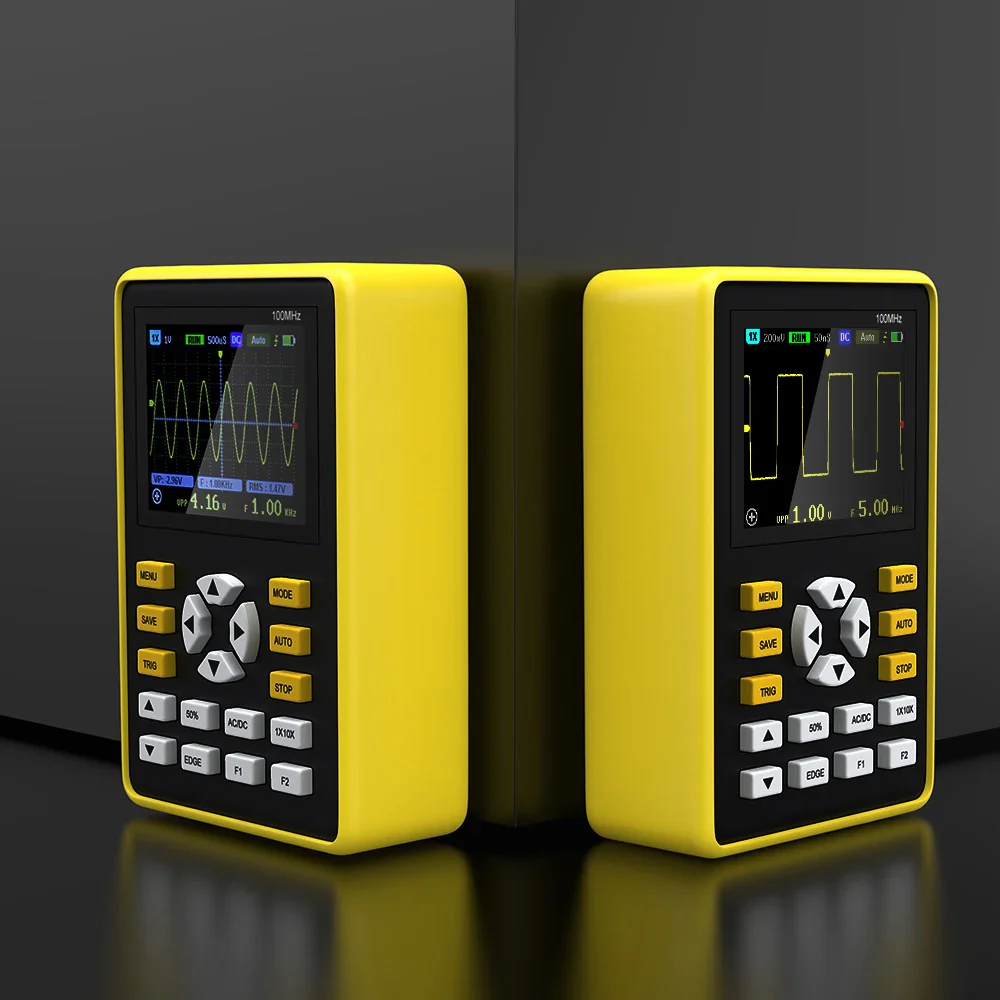

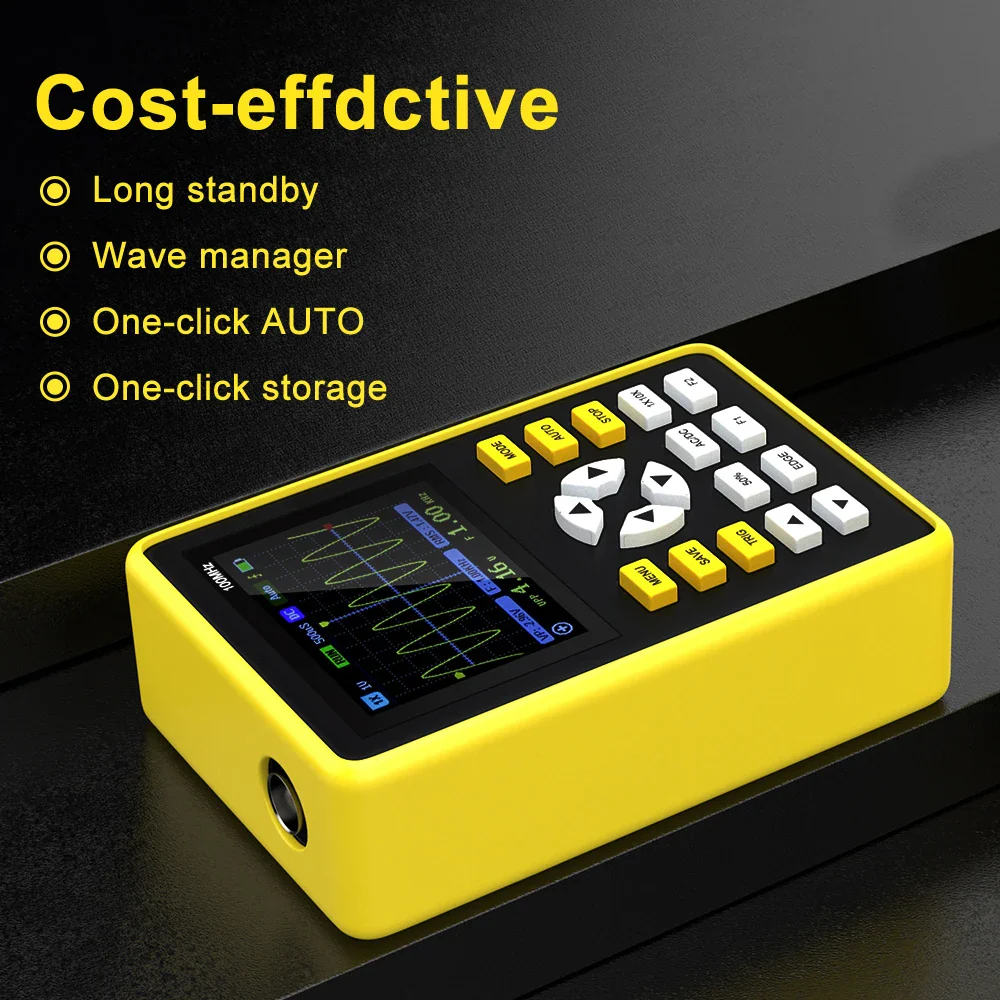

FNIRSI 5012H Handheld Digital Oscilloscope

Specifications:

1:Analog band width: 100MHz

2:Maximum real time sampling rate: 500MS/s

3:Vertical sensitivity: 50 mV/div ~ 100 V/div

4:Horizontal time base range: 50S/div ~ 6nS/div

5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe)

6:Storage depth: 128KB

7:Input resistance: 1M

8:ADC precision: 8bits

9:Coupling mode: AC/DC

10:Trigger mode: Single, Normal, Auto

11:Trigger edge: Ascending/descending edge

12:External trigger voltage 0-80 V

13:Display: 2.4 inch - 320*240

14:Power supply: 3000 mAh lithium battery

15:Size: 114mm x 74mm x 33mm

16:Weight: 250g

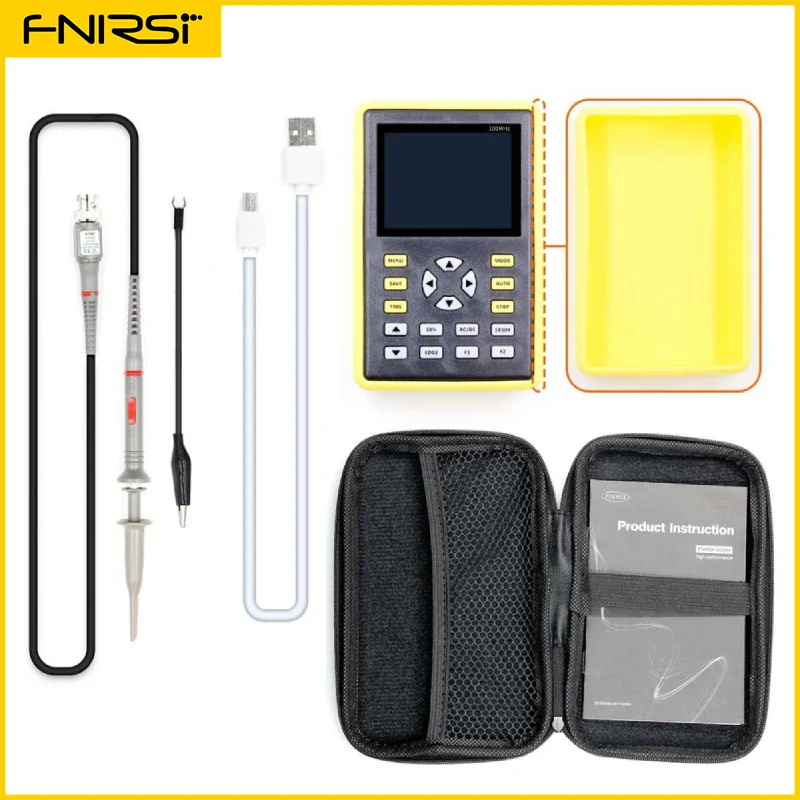

1 x FNIRSI-5012H oscilloscope host

1 x Matching 100MHz probe(1X and 10X)

1 x Micro USB data line

1 x User manual (English)

1 x High quality package
