1Hz -1MHz XR2206 Function Signal Generator DIY Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

1Hz -1MHz XR2206 Function Signal Generator DIY Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude

1Hz -1MHz XR2206 Function Signal Generator DIY Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude


1Hz -1MHz XR2206 Function Signal Generator DIY Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude


Specification:
 Voltage Supply: 9-12V DC Input
 Waveforms: Square, Sine & Triangle
 Impedance: 600 Ohm + 10%
 Frequency: 1Hz - 1MHz
 SINE WAVE
 Amplitude: 0 - 3V at 9V DC input
 Distortion: Less than 1% (at 1kHz)
 Flatness: +0.05dB 1Hz - 100kHz
 SQUARE WAVE
 Amplitude: 8V (no load) at 9V DC input
 Rise Time: Less than 50ns (at 1kHz)
 Fall Time: Less than 30ns (at 1kHz)
 Symmetry: Less than 5% (at 1kHz)
 TRIANGLE WAVE
 Amplitude: 0 - 3V at 9V DC input
 Linearity: Less than 1% (up to 100kHz) 10mA

Package Included:

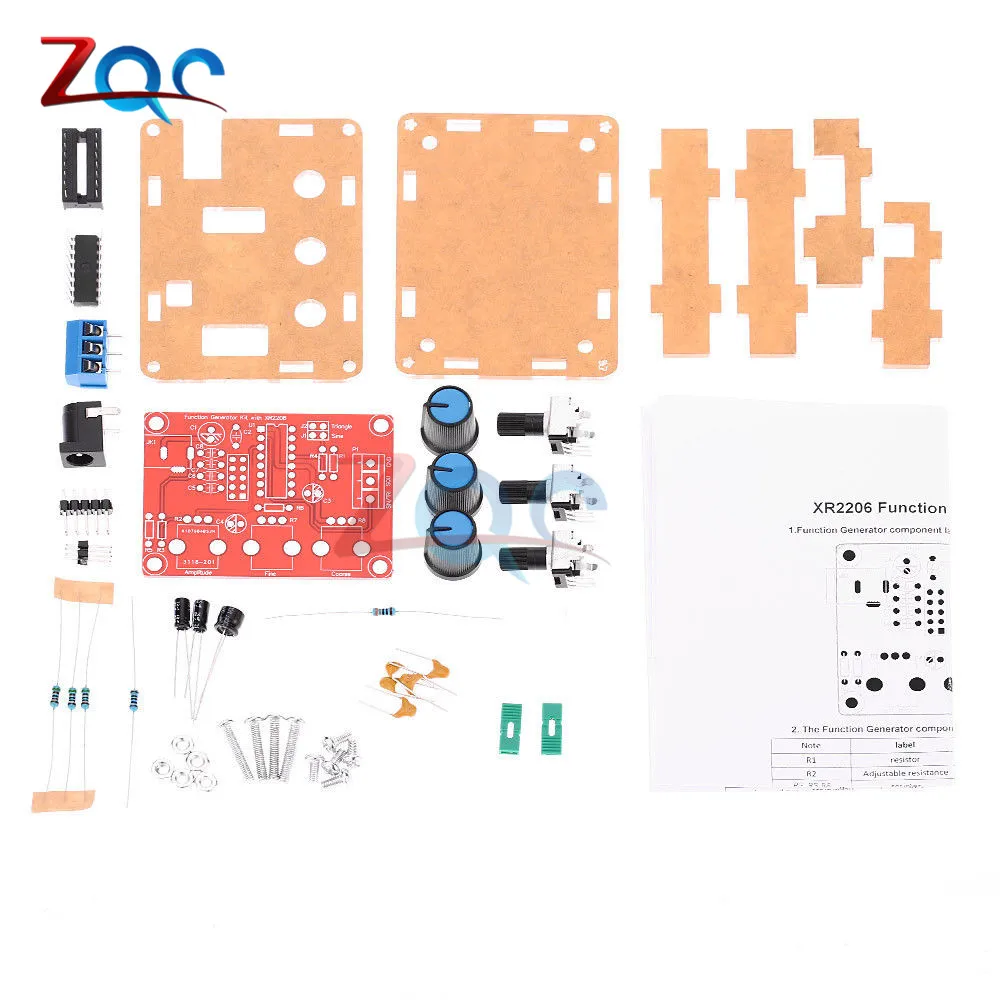

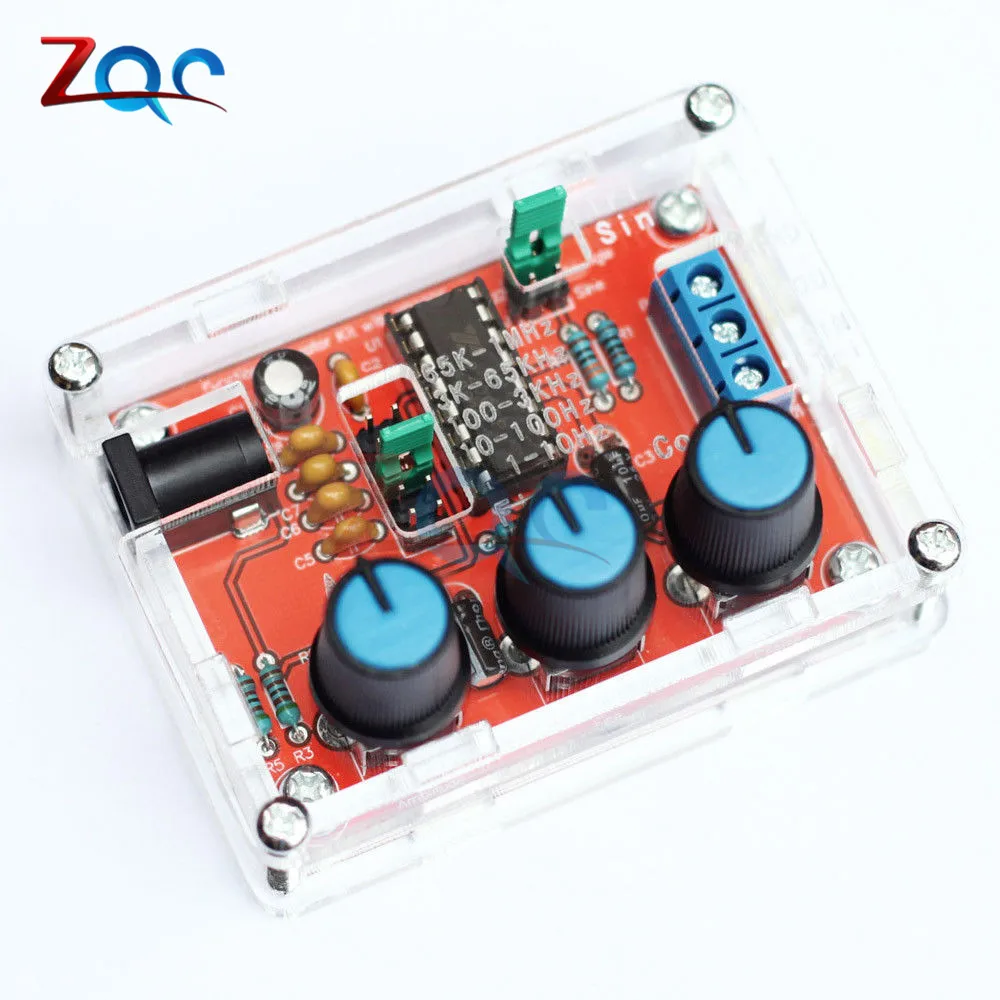

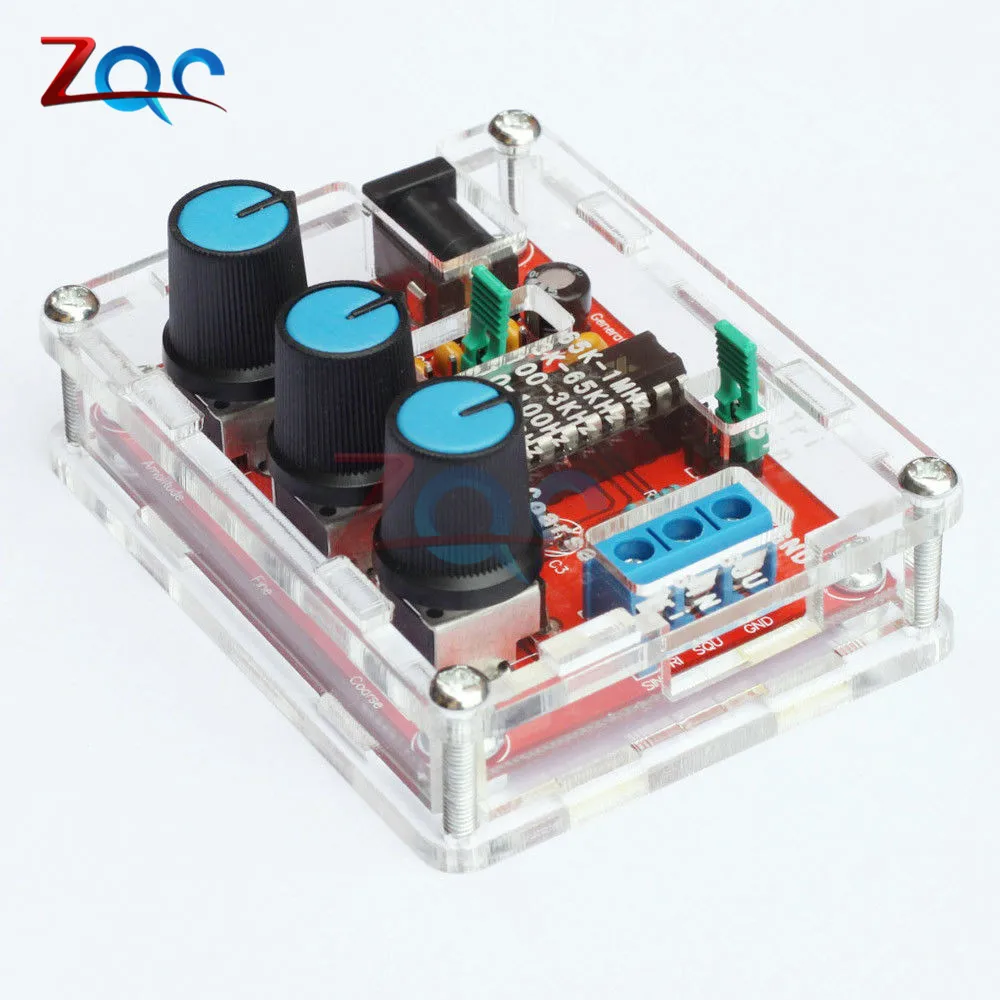

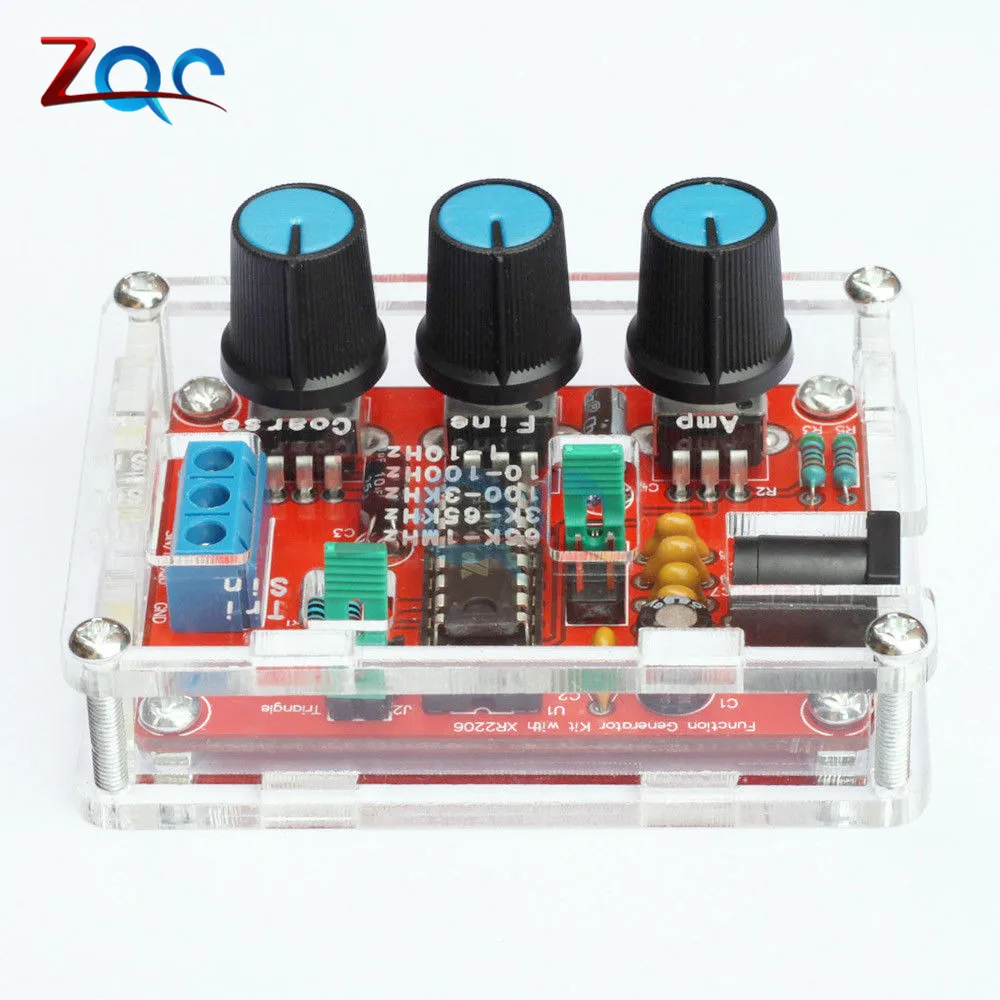

1 x Signal Generator DIY Kit Triangle Square Output 1Hz-1MHz with Case
