15W ST-15B V3 Stereo FM Transmission Transmitters 76-108/113MHz Small wireless audio transmitter only host

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

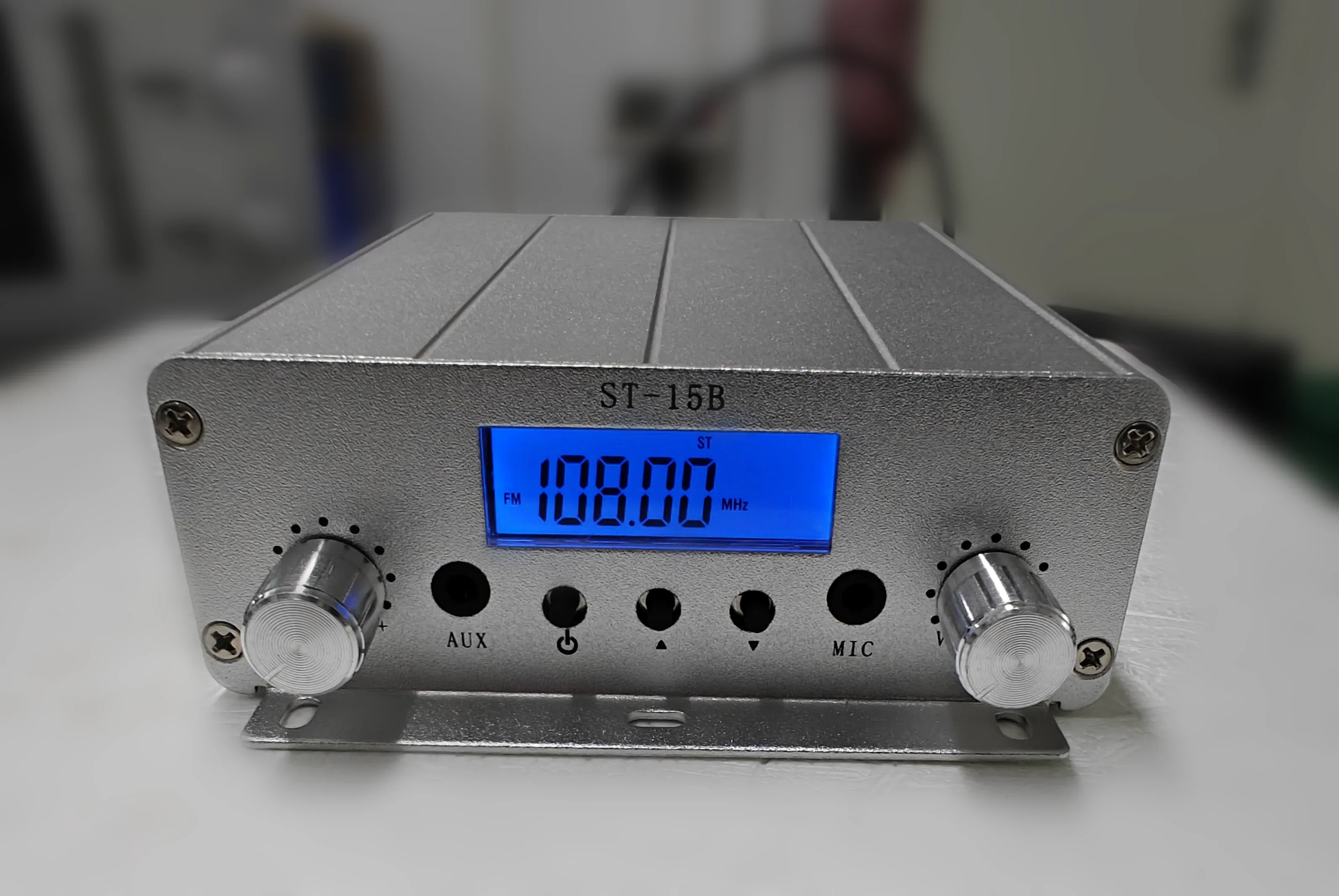

15W ST-15B V3 Stereo FM Transmission Transmitters 76-108/113MHz Small wireless audio transmitter only host

15W ST-15B V3 Stereo FM Transmission Transmitters 76-108/113MHz Small wireless audio transmitter only host

Note:This package is only the host, not including antenna and power supply,thanks!

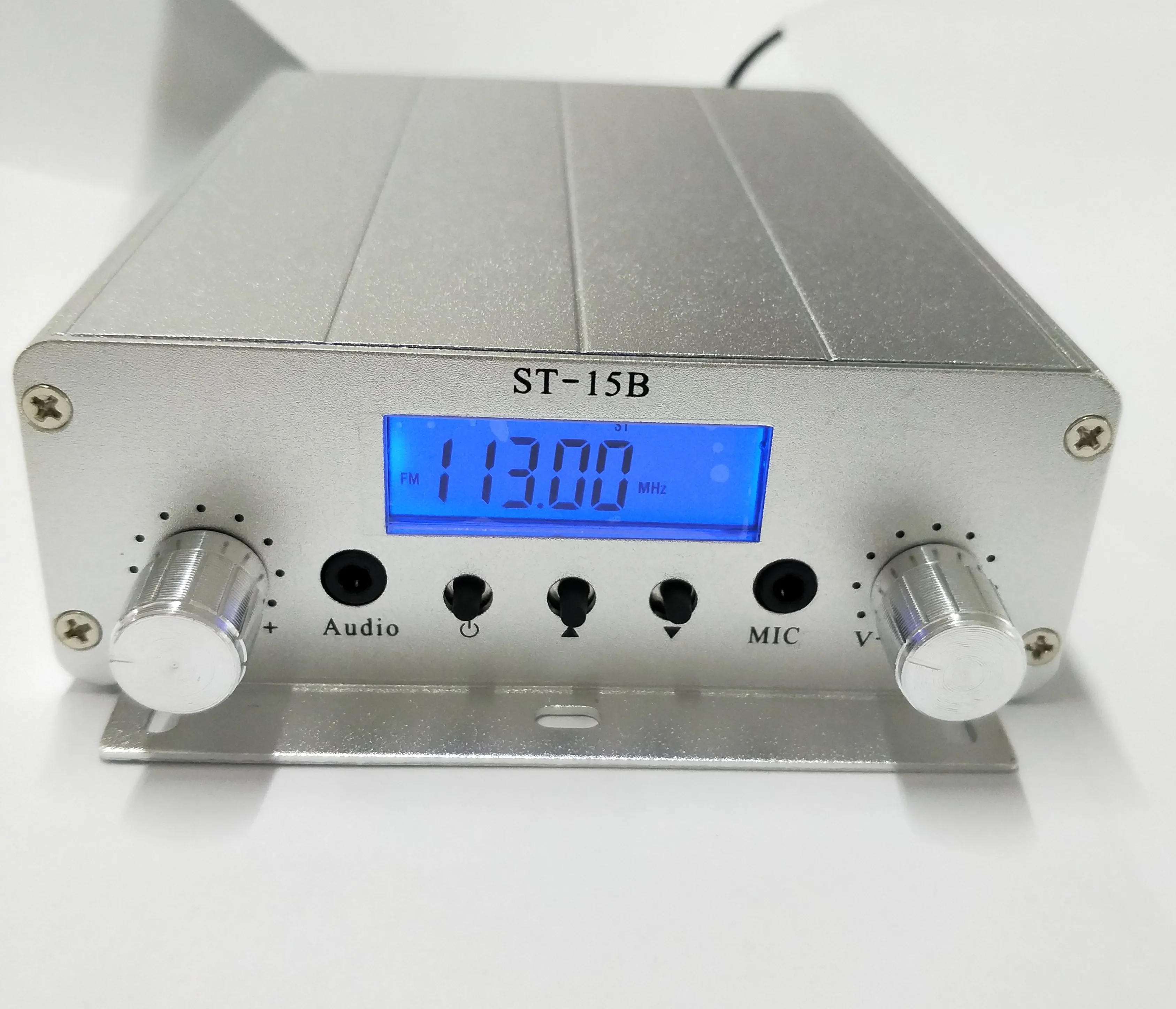

Freq range :76MHz ~ 108MHz 76MHz ~ 113MHz

Power : 15W
Tuning Step : 100kHz

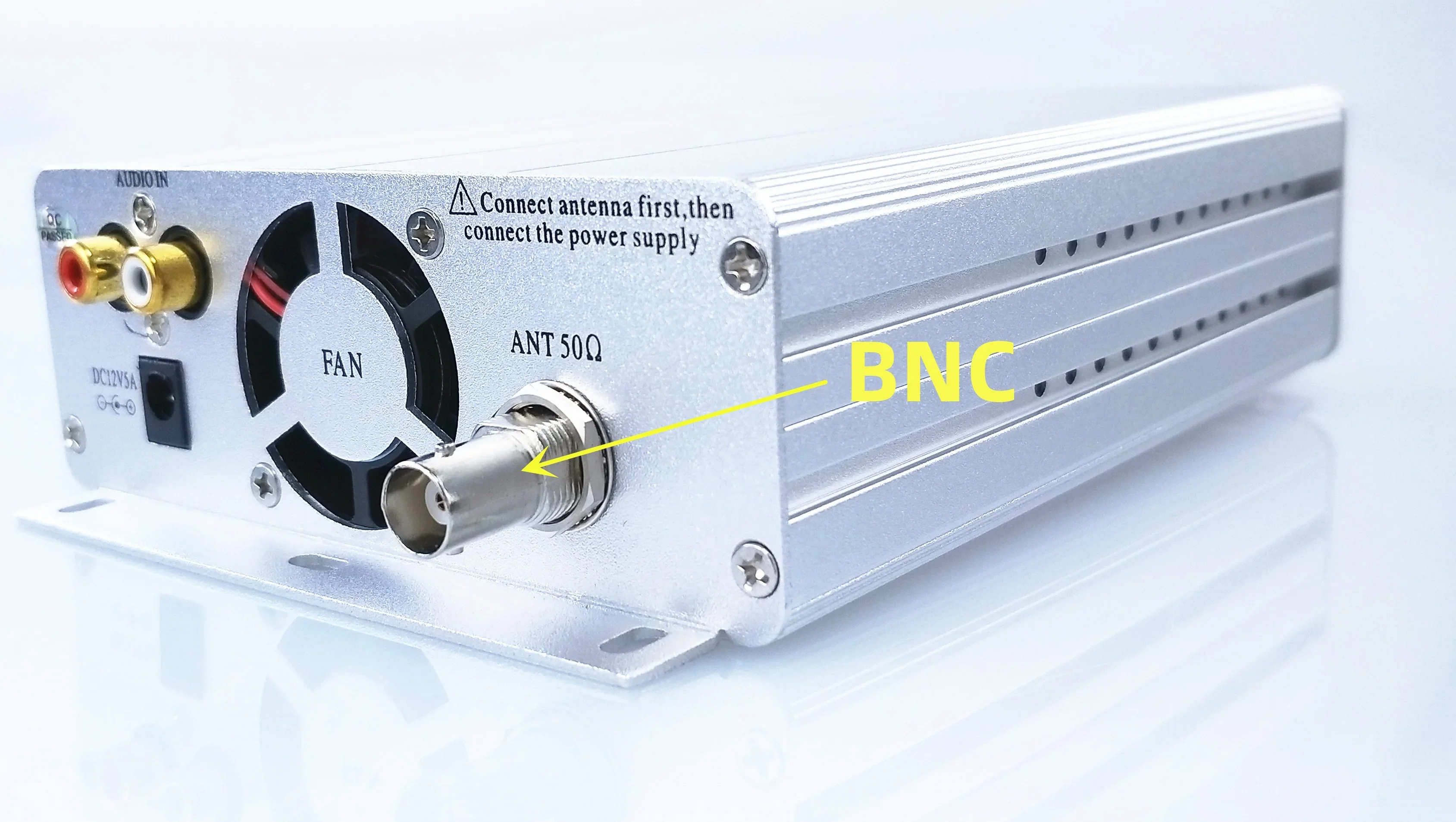

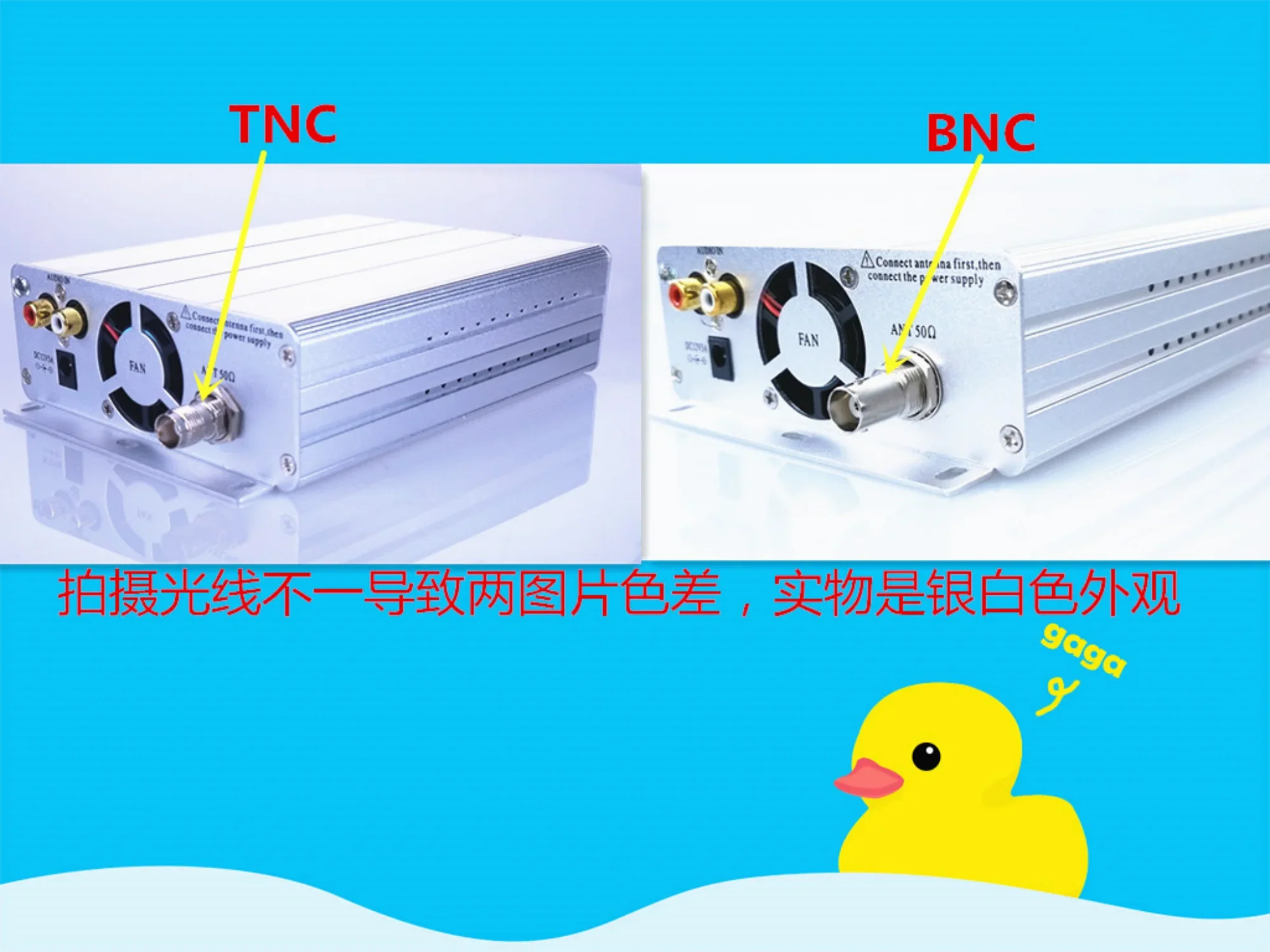

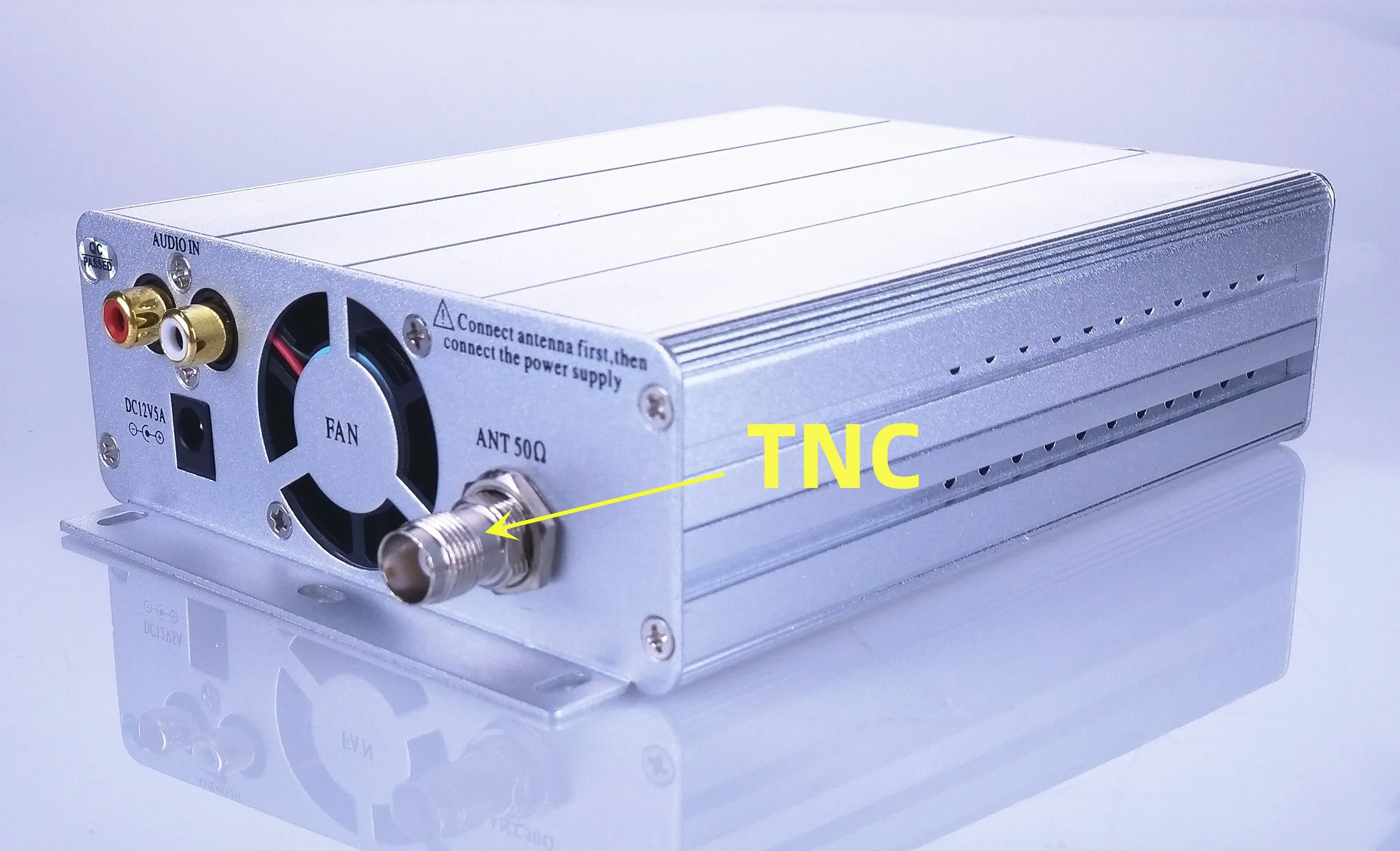

Antenna Type output:TNC/BNC
Channel: Stereo

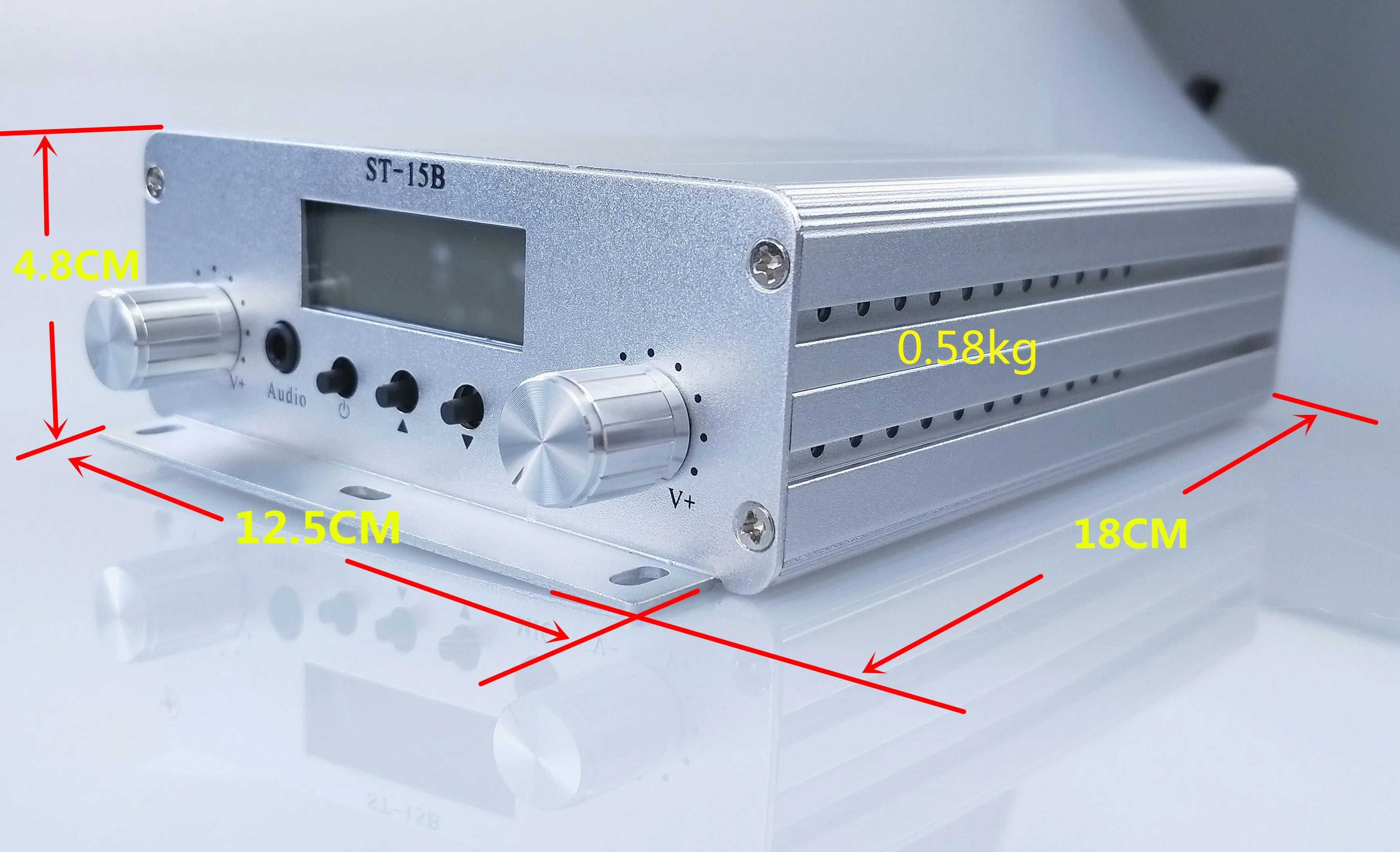

Overall dimensions: 180*125*48MM
RF output impedance:50?
Power supply in: DC12V6A
Stabilized way:PLL
Reference range:1 -- 12K(This is not absolute, empty ground, the antenna is installed in the high place, the effect will be better)
Audio input interface:3.5mm headphone connector andLotus Interface
Weight: 0.65KG (Including packaging materials)

1.Please do not use small telescopic antennas as they have a short transmission distance and can easily cause damage to the machine!
2.Please install the antenna first and then plug it into the power supply
Suggest using GP antenna


Package list:
15WX1 transmitter

Note:This package is only the host, not including antenna and power supply,,thanks!





Select Model
From $20.02

Original: $66.72

-70%
15W ST-15B V3 Stereo FM Transmission Transmitters 76-108/113MHz Small wireless audio transmitter only host—

$66.72

$20.02

Product Information

Shipping & Returns

Description

Note:This package is only the host, not including antenna and power supply,thanks!

Freq range :76MHz ~ 108MHz 76MHz ~ 113MHz

Power : 15W
Tuning Step : 100kHz
Antenna Type output:TNC/BNC
Channel: Stereo
Overall dimensions: 180*125*48MM
RF output impedance:50?
Power supply in: DC12V6A
Stabilized way:PLL
Reference range:1 -- 12K(This is not absolute, empty ground, the antenna is installed in the high place, the effect will be better)
Audio input interface:3.5mm headphone connector andLotus Interface
Weight: 0.65KG (Including packaging materials)

1.Please do not use small telescopic antennas as they have a short transmission distance and can easily cause damage to the machine!
2.Please install the antenna first and then plug it into the power supply
Suggest using GP antenna


Package list:
15WX1 transmitter

Note:This package is only the host, not including antenna and power supply,,thanks!
